HP Probook 4425s Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

  1. 6nvO4Fg26MbRLIXA
    6nvO4Fg26MbRLIXA
    jRGRajLEe4ybnscg

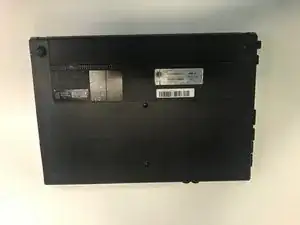

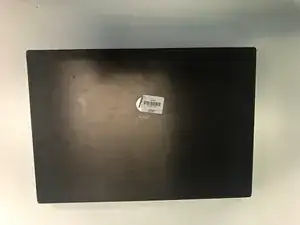

    • Turn off the laptop.

    • Flip over the laptop.

  2. AsWsItXNPjTnnLYg

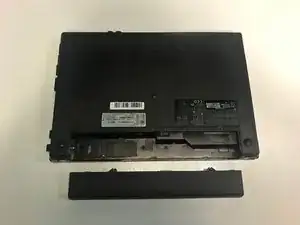

    • Take out the battery.

  3. u2L2jK24UtfYB1eG
    u2L2jK24UtfYB1eG
    QmUSnKoSTPTCdBBb

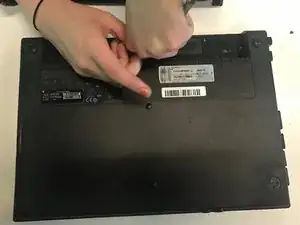

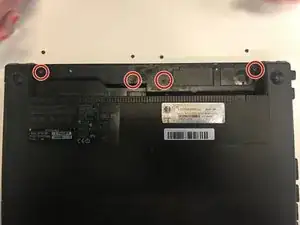

    • Remove the four 3 mm Phillips head screws that secure the keyboard in place.

  4. OqOHM3PXMfNMXTxo
    OqOHM3PXMfNMXTxo
    Ny2SXS11lapKFiWR
    4QYyUx6LrfITBNuT

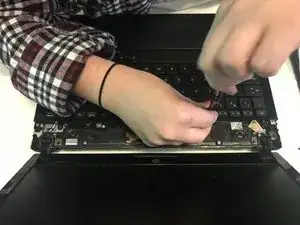

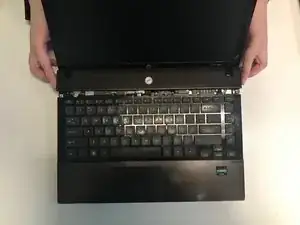

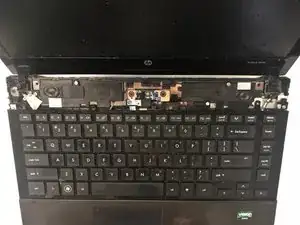

    • Flip over and open the laptop.

    • Remove the now loosened cover by grabbing both sides and sliding up.

    • Remove the four 3mm Phillips head black screws directly above the keyboard.

  5. yqb6ZhxFiyZOnuZq
    yqb6ZhxFiyZOnuZq
    JqiJEutS3lEIXvEa
    PRFgBDLNL6asmSDN

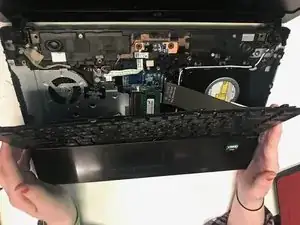

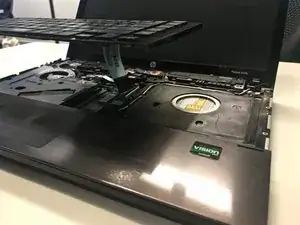

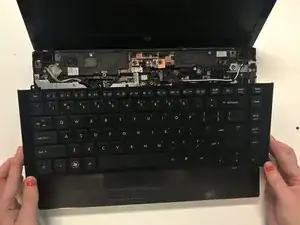

    • Carefully remove the keyboard by sliding it up towards the screen of the computer in order to release the keyboard ribbon cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
