Einleitung

  1. cBpPlZBdv6UbWFSI
    • Turn off the tablet and disconnect the power and all external devices from the tablet.

    • Position the tablet with the display panel down and the right side toward you.

    • Carefully insert a plastic opening tool between the tablet cover and display panel assembly, separating the two components. The first insertion point should be between the power button and the volume buttons.

  2. WqEuyd1uBXyFfhCD
    WqEuyd1uBXyFfhCD
    REavbfcp3MRQOTO3

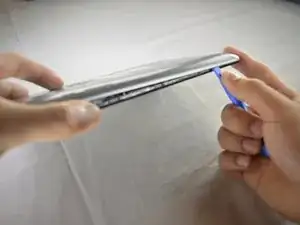

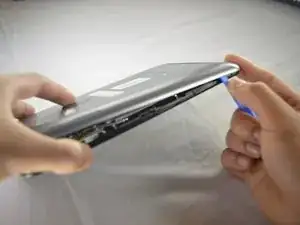

    • Slide the tool around the perimeter of the tablet until the edge of the cover is completely separated from the display panel assembly.

  3. nWfIMvGMtPhWPm2Z
    nWfIMvGMtPhWPm2Z
    AOMhKCV4RQOMumpK
    4CwLG4dE3mISC3hl

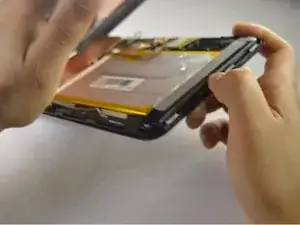

    • Pry open the back cover to take it off.

  4. 4C1EugFjQVMdlTeC
    4C1EugFjQVMdlTeC
    1YccpCOp5B31NZ3h
    QRPfghVPZAXHTdsw

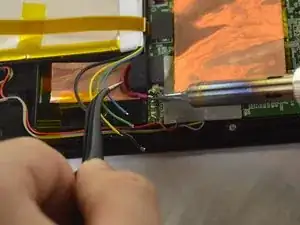

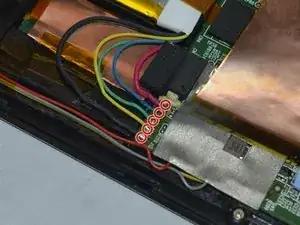

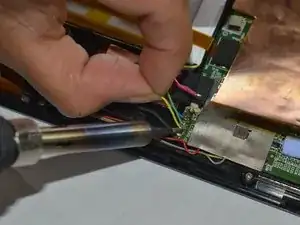

    • Disconnect the battery cables from the system board by desoldering them. See iFixit guide on how to solder.

    • The battery cables are soldered to the system in the following sequence, top to bottom: red, blue, green, yellow, black.

  5. 6GEVHMRuNWdWZeSh
    6GEVHMRuNWdWZeSh
    NSCBaPgANnL1XUcV
    oUh6gDDkkLUMPX6x

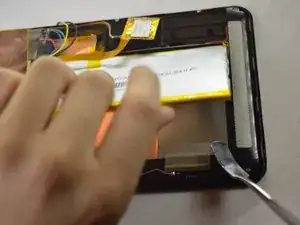

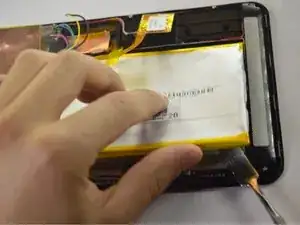

    • Insert a nylon spudger between the battery and the display panel assembly. Carefully pry the battery up and remove it from its place.

    • The battery is attached to the display panel assembly with double-sided adhesive. Make sure to firmly pull the battery.

    • The regular black nylon spudger should be used whenever possible, especially around batteries.

  6. FsgsLchm2JdyP2Ck
    FsgsLchm2JdyP2Ck
    4LIxWSPJK5Co2DBo

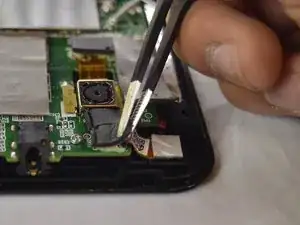

    • Use tweezers to remove the black foam stickers from the front facing camera to expose the wiring.

  7. Y6OjMqftuP1R2tKd
    Y6OjMqftuP1R2tKd
    MCUTl2RqVTGGlv5X

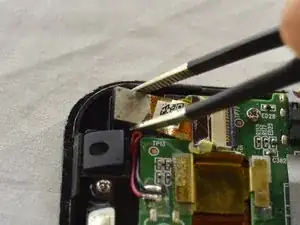

    • Lift the camera out from system board and firmly pull the wire out from the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
