HP Slate 8 Pro Speakers Replacement

Geschrieben von: Jose Revelo
  • Kommentare: 0
HP Slate 8 Pro Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

If you are having problems with your speakers, you should consider replacing them.

  1. gNQr1fCKD2sTmWSf

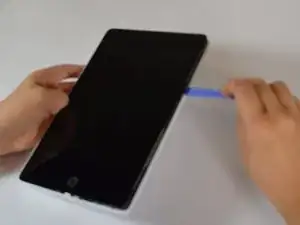

    • Use plastic opening tool to pry back panel off.

  2. G5WA6kZGuorQgZFI
    G5WA6kZGuorQgZFI
    WvbKMVIKIQmVpUfR

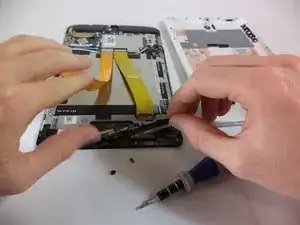

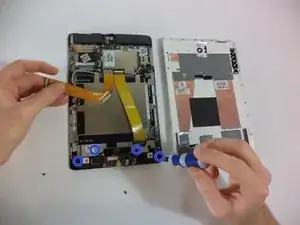

    • Remove the orange and yellow ribbon cables.

    • detach the screws along the IO board

  3. NWTGeuINgXHimjtI

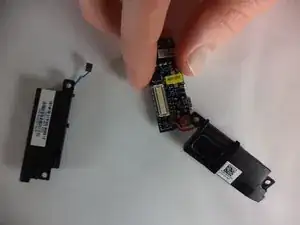

    • Remove the IO board and the speakers circuit. Note that they are held together.

  4. T2qyMuk1wHaUMfYb

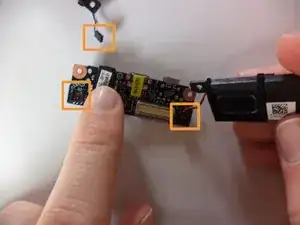

    • The tablet has two speakers. Each speaker is located to both sides of the IO board.

    • Detach the speakers from the cables that connect the speakers and the IO board. You will find more details in step 5 and 6.

  5. ZQbdcyadTqI1RMWx

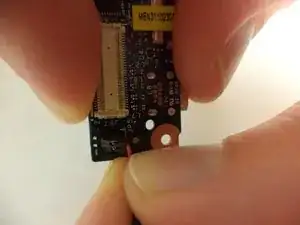

    • To remove the cables that connect the speakers and the IO board, apply a subtle pressure to pull the cable out.

  6. TiuhAPWOBXSgImXF
    TiuhAPWOBXSgImXF
    PAQWMQfESiE1hc3y

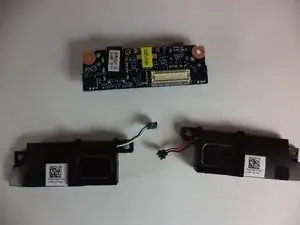

    • Once you detach the speakers from the IO board, you should have three pieces as shown.

    • You are ready to replace the speakers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
