HP Slim desktop 410-017cb hard drive replacement

Geschrieben von: Seth Alsbrook
  • Kommentare: 0
HP Slim desktop 410-017cb hard drive replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

This guide will walk you through replacing the hard drive on a HP Pavilion Slim 410-017cb.

  1. qBrSvIQB3FmwSG6G
    qBrSvIQB3FmwSG6G
    B1GNF6cXPBA2lUpW

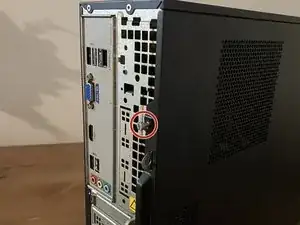

    • Make sure to power off the computer and unplug the power cord before working on the computer.

    • When opening the case, make sure to not do so while on carpet. This can cause static build-up in your body that can fry the motherboard.

    • After verifying the hard drive has failed (or is failing), remove the screw (T15) that holds the side cover on the case.

  2. nDigQNsWcsUrTh6U

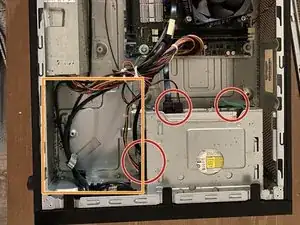

    • On this model, the hard drive is usually under the optical drive, screwed in below.

    • While uncommon, some systems which shipped with multiple drives (or selected CTO options) may have the drives and caddy installed here.

  3. md1deiEiR3LNnEXB

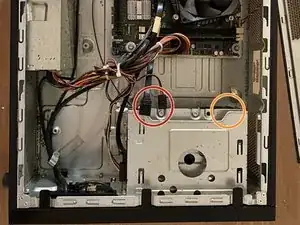

    • Before removing the DVD drive, disconnect the SATA data and power connections as shown.

    • For systems without the dual drive caddy mentioned in the previous step, you first need to remove the DVD drive. Push the green tabs shown to release it.

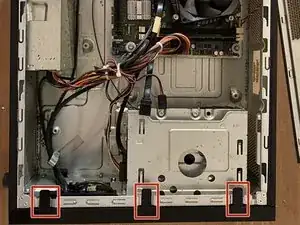

  4. VplPPmNgJlZBnZv2
    VplPPmNgJlZBnZv2
    XfRVuSMRs2JEZXAH
    WW62YVER1XDBbcAK

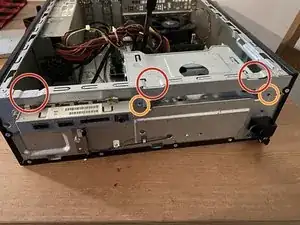

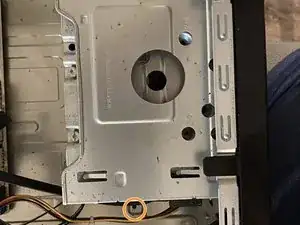

    • Remove the front panel from the system to reveal the screws that hold the drive cage NOTE: NO BETTER PICTURES ARE AVAILABLE, but this is held in with 3 clips which get unsnapped.

    • Remove the three screws (T15?) that secure the drive cage in the system.

  5. FsWi2uAgyBuoZwSU
    FsWi2uAgyBuoZwSU
    AvJeT2yRpLR6xJHC
    sGgb1iyi1K2jLWRq

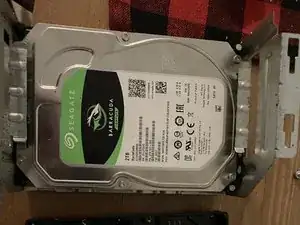

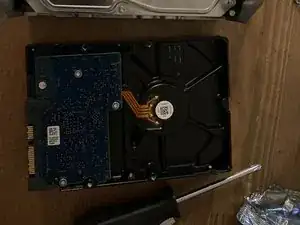

    • NOTE: It may be best to use a standalone TR15 driver here -- most interchangeable screwdrivers are too short or have insufficient torque. If this is not possible, it is possible to use a flathead screwdriver.

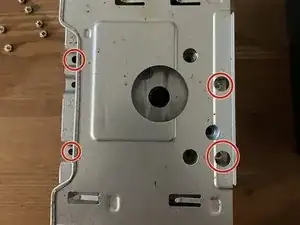

    • Remove the four screws (T15) holding the old hard drive in the system.

    • Reverse disassembly to install the replacement drive

Abschluss

To reassemble your device, follow these instructions in reverse order.
