HP Spectre 13 4003dx x360 Display Assembly Replacement

Geschrieben von: Ethan Plumer
  • Kommentare: 5
HP Spectre 13 4003dx x360 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

25 Minuten

Einleitung

This guide will give you step-by-step instructions on how to replace your display assembly. Make sure you have a clean, dry, uncluttered, and roomy work space that has good lighting before you start. Also, make sure that your display assembly actually needs to be replaced by consulting our troubleshooting guide.

  1. J1dBGmUKtkaeodcv
    J1dBGmUKtkaeodcv
    jdVGKPAjRCTTh2kp

    • Before you begin, be sure to turn off your laptop and discharge the battery down to 25%.

    • Turn the computer upside down.

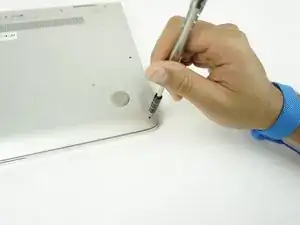

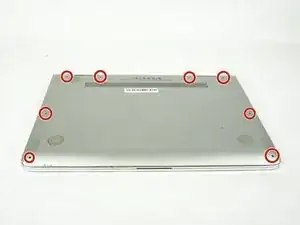

    • Use the T5 Torx Screwdriver to remove the eight 3.3 mm screws.

    • Make sure to use the magnetic project mat to help you keep track of the small screws.

  2. d5NmWPjFaSrMcKMe
    d5NmWPjFaSrMcKMe
    KIMJLC5UxjQUCBE1

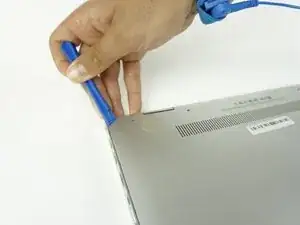

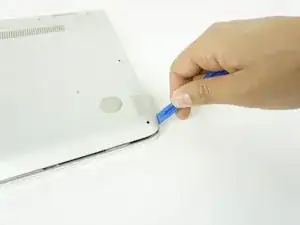

    • Use an opening tool to pry up and loosen the back case from the laptop.

    • If the back case doesn't loosen easily, there may be screws hidden underneath the rubber feet. Carefully pry a foot up and remove any hidden screws.

    • Remove the back case.

  3. AhLZNKTNOK6DxNMR
    AhLZNKTNOK6DxNMR
    2XaUXT4eUZFdKF4N

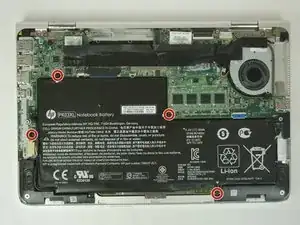

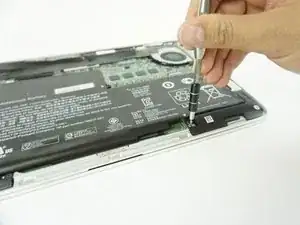

    • Remove the four 2mm Phillips #00 screws securing the battery.

    • The screw locations are marked by small white arrows on the battery.

  4. lOfBUl5OEF4tMcJO
    lOfBUl5OEF4tMcJO
    ArGCDbvpoxZjk3RL
    DIEd4OYWTYseJpjF

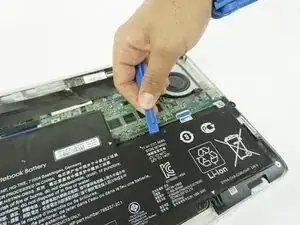

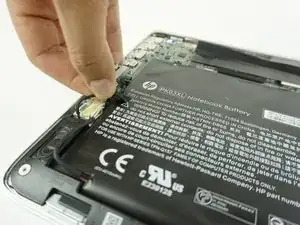

    • Peel off the adhesive on the left side of the battery holding the speaker wire down.

    • Move the battery slightly to gain access to the battery plug, located on the left edge of the battery.

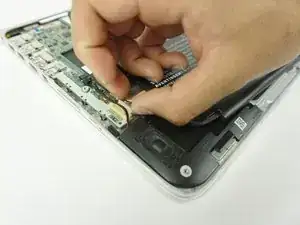

    • Carefully unplug the battery by pulling the connector towards the battery.

    • Pull parallel to the battery, not straight up.

    • Remove the battery.

    • It is normal for your battery to flex and bend a bit where the wider section meets the narrower section.

    Super article qui rend bien service et sécurise ce remplacement !

    Peut-être quelques précisions après avoir remplacé cette batterie :

    - Côtés extrêmes gauche et droite en haut, 2 vis plus longs que les autres. Un tournevis Torx T5 est plus approprié que le 4 car 2 vis étaient bien scellés.

    Il vaut mieux soulever le capot côté charnière en commençant par cet endroit mais en finalisant par l’avant de l’appareil. En effet, le côté charnière du PC en contient également sous le capot gênant la sortie de cette partie arrière.

    Le tournevis cruciforme 2,5 est plus approprié que le 2.

    Merci pour vos astuces :-)

    Patrice BONNEFOY -

    Bonjour

    J'arrive à dégager la partie avant du couvercle mais ça bloque juste sous les pieds arrière.. et je n'ose pas forcer…. avez vous une astuce ????

    BAIGUE RENE -

    Bonjour, Il faut vérifier qu'il n'y a plus de vis qui maintient la pièce. Attention, sur certains modèles de PC portables il peut y avoir des vis sous le caoutchouc des pieds du pc.

    Brendan -

  5. aO1oisVl5FHUIIaI
    aO1oisVl5FHUIIaI
    iuNqYpZQDw1L6oiO
    FAIoSkYBFZf6uhIw

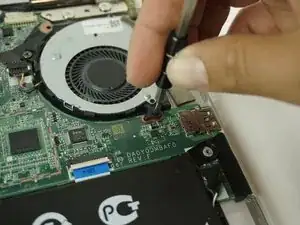

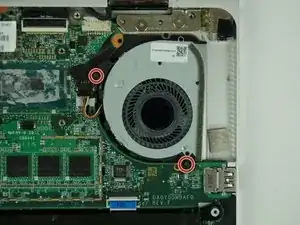

    • Remove the two 2mm Phillips #00 screws from the fan.

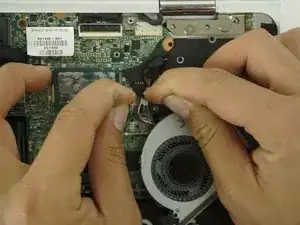

    • Disconnect the fan from the motherboard.

  6. vZo6wixNxZgE4Uqv
    vZo6wixNxZgE4Uqv
    jcwetgfDUW5NKSZO
    JfStiVrdVWPHTbuX

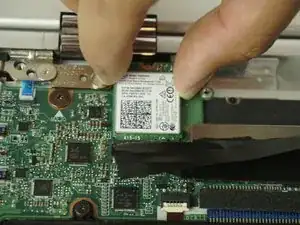

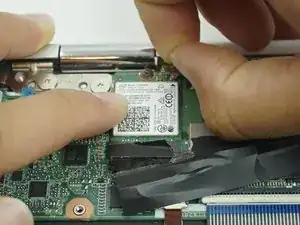

    • Using minimal force, disconnect both WiFi antennae cables.

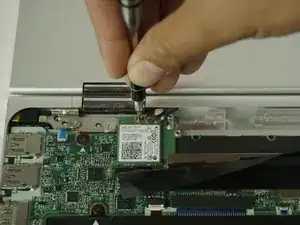

    • Remove the single Phillips #00 screw that secures the WiFi card.

    • Slide the WiFi card up until it is completely removed.

    • Do not pull up on the wireless module while it is still seated. You may inadvertently damage it.

  7. SGNHweX1gqDohlQ4
    SGNHweX1gqDohlQ4
    UHgCIouc1B5oHiqQ

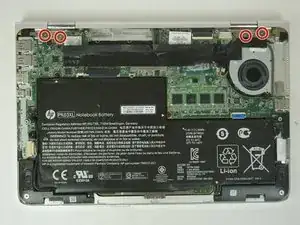

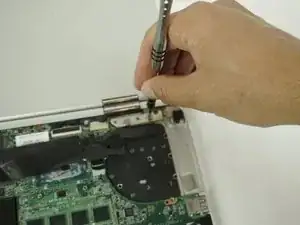

    • Remove the four hinge screw with a Phillips #00 screwdriver.

  8. erwELbBKEOxbxYyG
    erwELbBKEOxbxYyG
    hNxICq6uUoDdMe2G

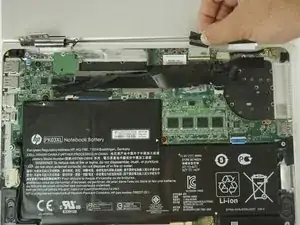

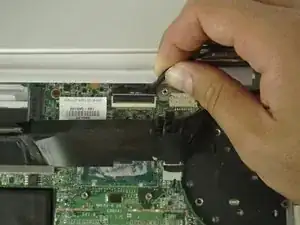

    • Grip the black tape and pull up to unplug.

  9. OT3x1GSfphflXCPQ

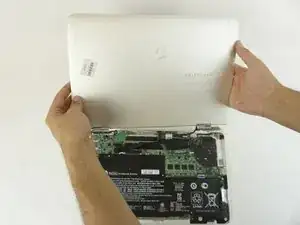

    • Separate the display assembly from the body of the computer.

    • As a result of the orientation of the hinges, you may need to rotate open the laptop to around 270 degrees to clear them.

Abschluss

To reassemble your device, follow these instructions in reverse order.
