HP Spectre 13-3010dx Screen Replacement

Geschrieben von: Laurisa Titterud
  • Kommentare: 9
HP Spectre 13-3010dx Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

5 Minuten

Einleitung

This guide will aid you in replacing your laptop screen. Make sure you are wearing the Anti-Static Wrist Strap and remove the battery before beginning this guide to avoid any damage to your computer.

  1. c2mGgSHBnRs5PElQ
    c2mGgSHBnRs5PElQ
    HJIoJbPmfqBs51xd

    • Put on Anti Static Wrist Strap.

    • It is always a good idea to ground yourself when working with electronics to prevent static buildup. You wear this strap to protect you and your device from accidental electrostatic discharge (ESD) damage during repairs.]

    • Flip Computer Upside down.

    • Unscrew the eight 3.3mm black screws on the back casing with the T4 Torx Screwdriver.

  2. WIBaMVMUL3fRA6F3
    WIBaMVMUL3fRA6F3
    cejWS5n4hykvAGhF

    • Use the plastic opening tool to lift the back case off.

    • Use the plastic opening tools first; metal spudgers can damage your device.

  3. 22AWOLcKDSEdtc2D

    • Remove the six 2.0mm silver screws and the two 3.2 mm black screws using the PH00 Phillips Screw Head.

  4. Mr4RRdvvXJXMot4N

    • Gently unplug from CONO851 plug, using the plastic opening tool.

    HP Spectre 13-3010dx Battery Replacement

    Cosmas Dorah -

  5. xdMlH43gB1nXwvF1
    xdMlH43gB1nXwvF1
    1CHUR34jK3GvAFra

    • Gently lift up the battery and remove using the plastic opening tools.

  6. faWNYGFnBFyv1hJP
    faWNYGFnBFyv1hJP
    gOKQIZD2fMUHtQmU

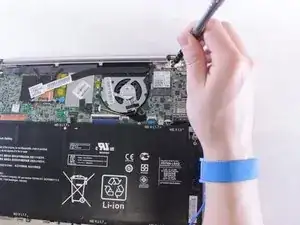

    D4tbqbZZ6u4Bg33t

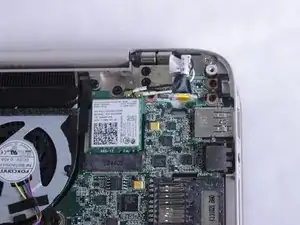

    • Unscrew the two brackets using the Phillips Head #0.

  7. qRXFcWSLfBUh2aTx
    qRXFcWSLfBUh2aTx
    xIKuWRmMbaf2FRMJ
    ZGA2L3DbEfMZnDTt

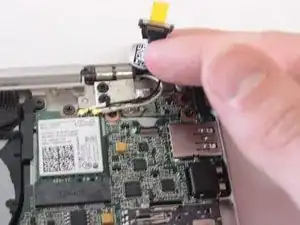

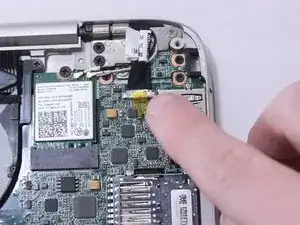

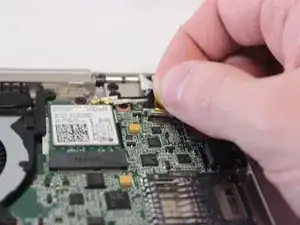

    • Detach the plug.

  8. tUYV1SyR6r24at45
    tUYV1SyR6r24at45
    tWXEC2NHKoUN3MWV

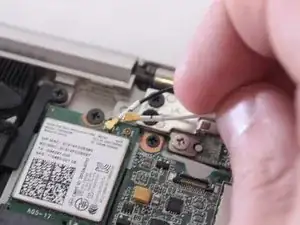

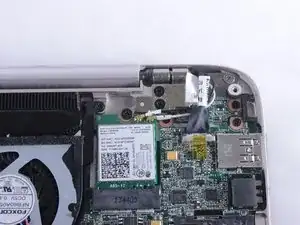

    • Detach the wires that snap off.

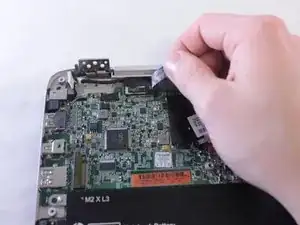

  9. bHumgkwsrhIomfr1

    • Peel back the tape strip.

  10. TAAWeMsWMymaAxnM
    TAAWeMsWMymaAxnM
    QtXLskTAVKn1dUAI

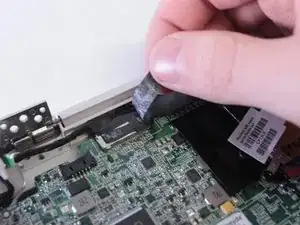

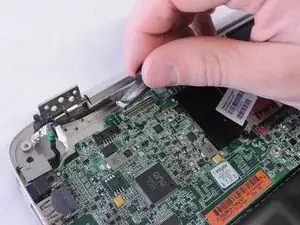

    • Grip the tape strip attached to the black plug and pull upwards to remove from port.

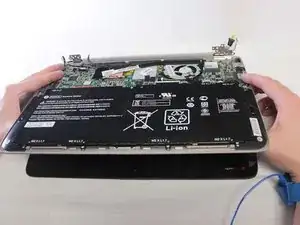

  11. R5MONFe1dMcNUl14

    • Once all of the plugs are detached and the screws are removed, simply lift the bottom half of the computer away from the display unit.

    • You may need to adjust the brackets that the display pivots on: they are tough to move but totally safe.

Abschluss

To reassemble your device, follow these instructions in reverse order.
