The laptop needs to be turned off during this procedure. The battery will need to be removed for this procedure and you or your laptop can be damaged if the battery is disconnected while the power is on. All SD cards need to be ejected before replacing the SD card reader.
-
-

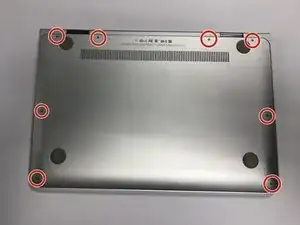

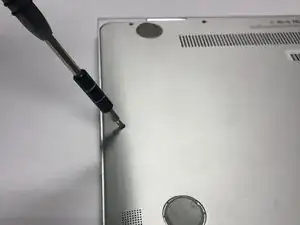

Using the Torx T5 screwdriver, remove the eight 8 mm screws on the bottom case of the laptop.
-
-
-

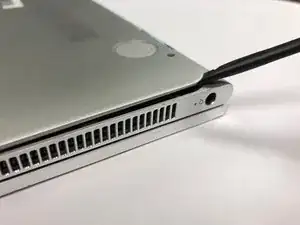

Pry up one corner of the bottom case with a spudger.
-
Work the spudger around the edges, making your way towards the bottom of the laptop.
-
Remove the bottom case.
-
-
-

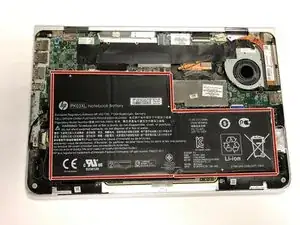

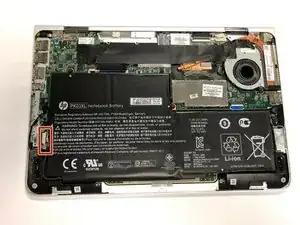

Orient the laptop the same way as the pictures. The battery is bordered in a red outline.
-

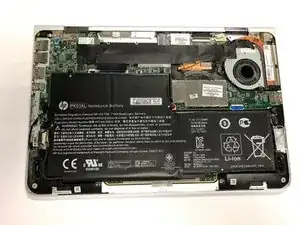

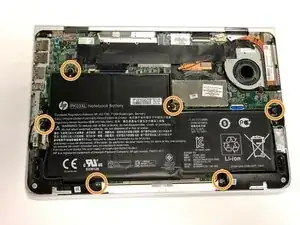

Remove the six 4 mm screws using a Phillips #000 screwdriver.
-
-
-

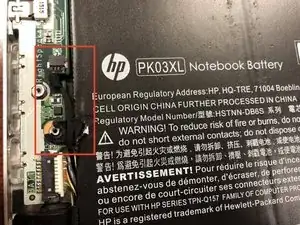

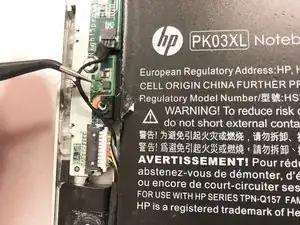

The speaker cable may be attached to the battery with black electrical tape. If so, remove the tape.
-
Move the cable clear of the battery.
-
-
-

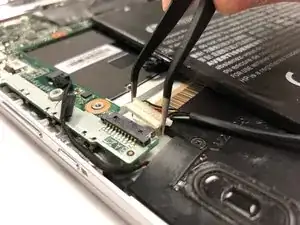

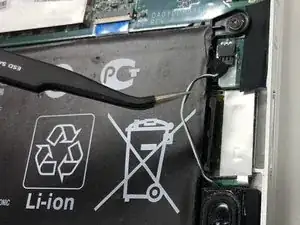

Use tweezers to remove the speaker cable from the groove attached to the battery.
-

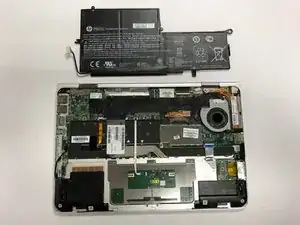

Push the cable to the side so it does not get in the way of the battery removal.
-
-
-

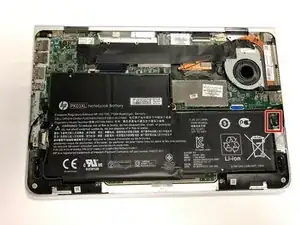

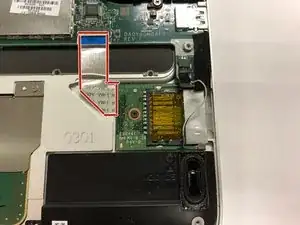

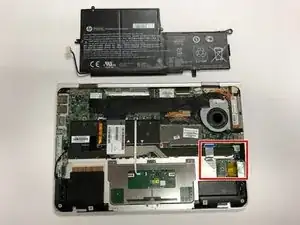

The SD Card Port is located in the red box.
-

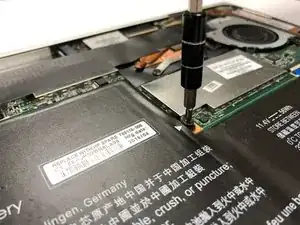

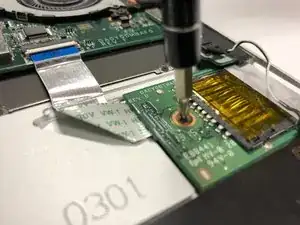

Remove the one PH0 30 mm screw circled in red.
-
-
-

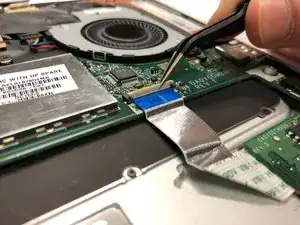

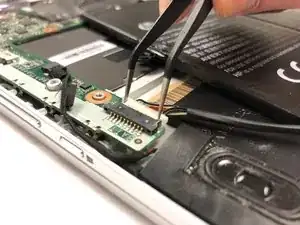

To unlock the ribbon cable, lift the white flap on the ZIF connector 90 degrees.
-

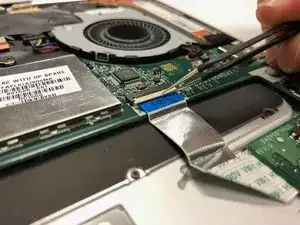

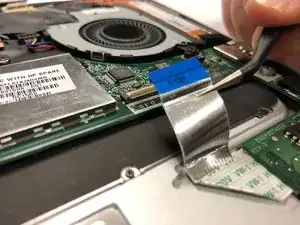

Slide the ribbon cable out of the connector.
-
To reassemble your device, follow these instructions in reverse order.
