HP Spectre Pro X360 G1 Battery Replacement

Geschrieben von: Alexis Garcia
  • Kommentare: 0
HP Spectre Pro X360 G1 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide will instruct you on how to remove and replace the battery. If the battery doesn’t hold a charge a replacement may be necessary.

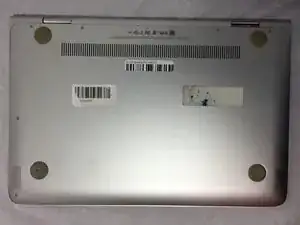

  1. GIvKIktDcuQvmoNJ

    • Turn off and unplug the laptop.

    • Flip the laptop so that the backplate is exposed.

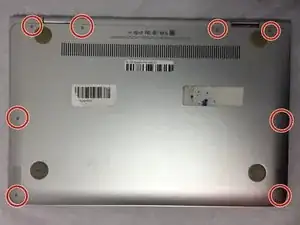

  2. oyHNgKxT3Q1wkItY

    • Remove the eight screws with the T5 Torx screwdriver.

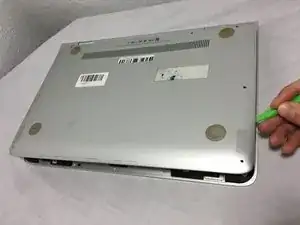

  3. jGu4sAHRHToUBBUH

    • Using the plastic opening tools carefully lift the backplate.

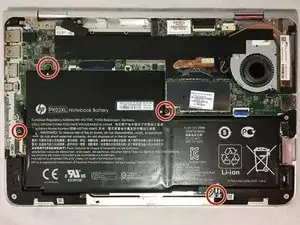

  4. 1JVHeXNnV5qslvdL

    • Remove the 4 screws holding down the battery with the Phillips #1 screwdriver.

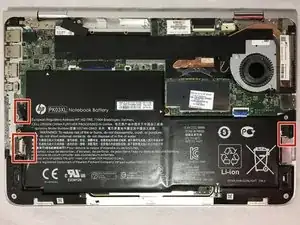

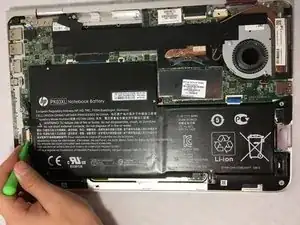

  5. tHg3UI5ZsbdBGp1L
    tHg3UI5ZsbdBGp1L
    5sG3MaxKlUNqNCfR

    • Disconnect the 3 wires connected to the battery.

    • Tweezers may be needed to disconnect the wires.

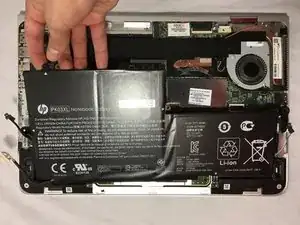

  6. HFx5cVK4ZfERyHrd

    • Lift the battery off of the alignment pins on the top cover and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
