HP Spectre x2 12-a002dx Battery Replacement

Geschrieben von: Talha Bin Amir
  • Kommentare: 17
HP Spectre x2 12-a002dx Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

1 Stunde

Einleitung

A faulty battery could be the reason for the laptop not turning on. If you are certain that the battery needs to be replaced, follow this guide to replace the battery.

  1. KyZgTBC61NCRYUbe

    • Make sure the device is powered off and the kick stand is retracted.

    • The HP Spectre should be placed on a flat surface with the keyboard detached.

  2. cqVD6JWMyP3i4EjM
    cqVD6JWMyP3i4EjM
    tOGZjqyxOgQarjYD
    LfBvMupAvIeqF1Bh

    • To remove the screen, there is an entire system of clips which need to be undone as well as 4 Phillips M1.5x2.7 screws.

    • The screws should be removed using a Phillips #000 screwdriver. There is a sticker where the laptop attaches to the keyboard.

    • Heat the sticker (if needed) and use fine point tweezers to grip the sticker and remove it.

    Could you please some image of the screws and the tool you used?

    fabio -

    Podrían subir el procedimiento para despegar los clip, ? al parecer viene pegada la pantalla a la carcasa, en ese caso se usaría la pistola de calor o estoy mal ? Al guíen que me guié por favor, agradezco de antemano

    sergio villanueva -

  3. a1ag6PT1SjOIKIW1
    a1ag6PT1SjOIKIW1
    ZiicD4GKUScvNGYd
    KpJHuZH4cEWVAC2N

    • Use the plastic opening tools or insert a spudger to begin unclipping the system.

    • Pry the screen off once all the clips have been unclipped.

    • The screen may shatter if not already shattered (beware of flying glass).

    • This screen will broke. there are double tape underneath the frame, that is not listed in here.

  5. Es61jkWTG112FaXH
    Es61jkWTG112FaXH
    OKMgk4wroTedXA4V
    brw2PUXIUJPNFpCt

    • Remove the connecting cable of the screen and battery. Use a spudger to reveal the adhesive strip and carefully peel it off.

    • Insert a spudger to the other end and release the ZIF connectors. Detach the cable.

    • While a metal spudger is pictured, use a black nylon spudger instead because it is ESD safe.

  6. iV35NVnwlS3FK3TS

    • The battery for this device is under the screen and takes up most of the space.

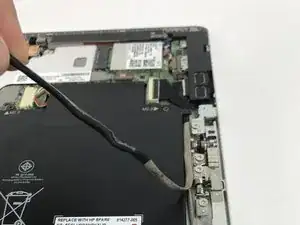

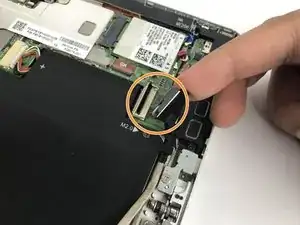

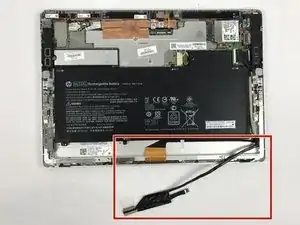

  7. LmuUAxCxiiuM1Z5g
    LmuUAxCxiiuM1Z5g
    yKXPIs2ohXO5Y5XI
    BPpBBxNaDqECsZIQ

    • Pull the wire gently towards the connector.

    • Then, disconnect the wire and remove it from the device.

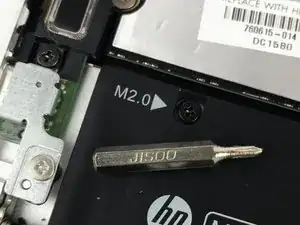

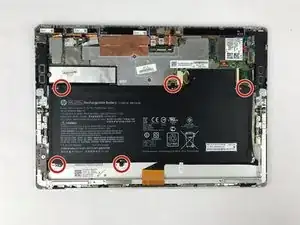

  8. fQBOeO6AySCwfenq
    fQBOeO6AySCwfenq
    oCUZpgvaBJTVChBm

    • Remove the six Phillips M2.0×3.5 screws connecting the battery to the device using the JIS 00 screwdriver.

    • Make sure to keep the screws in a safe place. You will need to use them to secure the replacement battery back in place.

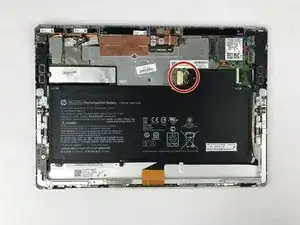

  9. nYBnUa1UKchTDIIE
    nYBnUa1UKchTDIIE
    nXUPirUSeYG1yWOM

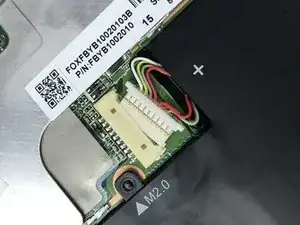

    • Use the tip of a spudger to push the battery connector out of its socket.

    • It helps to "walk" the connector out by pressing first on one side, then the other.

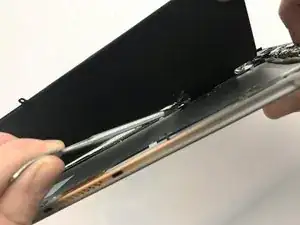

  10. LWEki2ZlVSlFmC6N
    LWEki2ZlVSlFmC6N
    CARNUfeKCiTFQ5HN

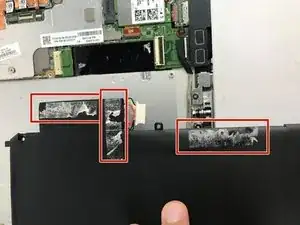

    • Lift up the side of the battery that isn't glued down with adhesive

    • Use the spatula to gently scrape away the adhesive while applying a gentle upward pressure to help break the adhesive bonds.

    • A metal spudger was used again as pictured, but the black nylon spudger would be more appropriate to use.

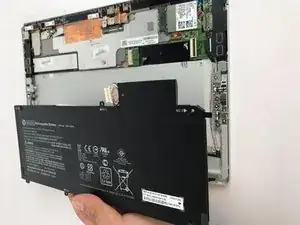

  11. hhXJwkhbCKckKaWT

    • Finally remove the old battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
