HP Spectre x2 12-a002dx Speaker Replacement

Geschrieben von: Talha Bin Amir
  • Kommentare: 2
HP Spectre x2 12-a002dx Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

1 Stunde

Einleitung

Many times the speaker(s) on your device can stop functioning properly due to several reasons. This guide shows how to replace the speaker(s) on this device.

  1. KyZgTBC61NCRYUbe

    • Make sure the device is powered off and the kick stand is retracted.

    • The HP Spectre should be placed on a flat surface with the keyboard detached.

  2. cqVD6JWMyP3i4EjM
    cqVD6JWMyP3i4EjM
    tOGZjqyxOgQarjYD
    LfBvMupAvIeqF1Bh

    • To remove the screen, there is an entire system of clips which need to be undone as well as 4 Phillips M1.5x2.7 screws.

    • The screws should be removed using a Phillips #000 screwdriver. There is a sticker where the laptop attaches to the keyboard.

    • Heat the sticker (if needed) and use fine point tweezers to grip the sticker and remove it.

    Could you please some image of the screws and the tool you used?

    fabio -

    Podrían subir el procedimiento para despegar los clip, ? al parecer viene pegada la pantalla a la carcasa, en ese caso se usaría la pistola de calor o estoy mal ? Al guíen que me guié por favor, agradezco de antemano

    sergio villanueva -

  3. a1ag6PT1SjOIKIW1
    a1ag6PT1SjOIKIW1
    ZiicD4GKUScvNGYd
    KpJHuZH4cEWVAC2N

    • Use the plastic opening tools or insert a spudger to begin unclipping the system.

    • Pry the screen off once all the clips have been unclipped.

    • The screen may shatter if not already shattered (beware of flying glass).

    • This screen will broke. there are double tape underneath the frame, that is not listed in here.

  5. Es61jkWTG112FaXH
    Es61jkWTG112FaXH
    OKMgk4wroTedXA4V
    brw2PUXIUJPNFpCt

    • Remove the connecting cable of the screen and battery. Use a spudger to reveal the adhesive strip and carefully peel it off.

    • Insert a spudger to the other end and release the ZIF connectors. Detach the cable.

    • While a metal spudger is pictured, use a black nylon spudger instead because it is ESD safe.

  6. GjUB2AXjtSHvu4N2

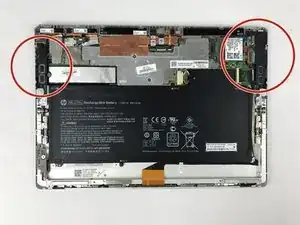

    • The HP Spectre x2 has Two Speakers at the top of the laptop on either end.

  7. QRQ1fDBJEaBXCInU
    QRQ1fDBJEaBXCInU
    xMNuFeJY4CF3gLW6

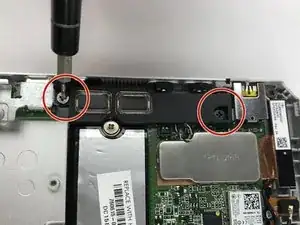

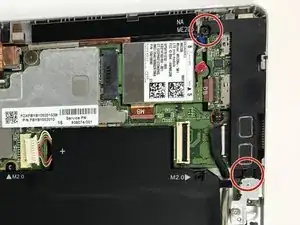

    • Unscrew the speaker assemblies.

    • Each speaker has two PM2.0×3.4 screws securing the speakers as shown. Use a Phillips #0 to unscrew all four screws

  8. MuRtBM5dGLMVvJMs

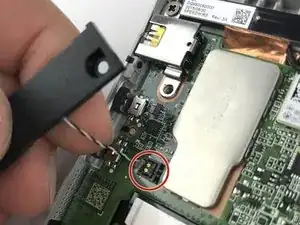

    • Each speaker is connected to the motherboard by a cable.

    • Remove this cable by gently working the connector out of the socket on the motherboard. Be careful not to damage the socket on the motherboard.

  9. HWtZVDdMRKLiOPmp

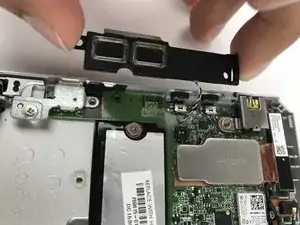

    • Both speakers should now freely come out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
