HP Spectre x360 13-4103dx Fan Replacement

Geschrieben von: Andrew Medeiros
  • Kommentare: 2
HP Spectre x360 13-4103dx Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

3 - 7 Minuten

Einleitung

Does your HP Spectre x360 13-4103dx laptop get hot for long periods of time, then suddenly shut down on its own or you hear the fan working constantly on a full speed? You most likely are experiencing troubles with its cooling fan which requires replacement. A working cooling fan permits air to flow in your laptop to keep its internal components cool and from overheating.

  1. Rs6AwEnuLBwcAIZK

    • Turn off your laptop before you start.

    • Flip your laptop so the bottom is facing upwards.

    * Do so gently, so that none of the internal parts are damaged, Its best to try to clean the backside of a laptop with a wipe to get rid of any dust or debris.

    Brett Kneeland -

  2. pefqgcArKRbVG62X

    • Use a Phillips #0 to remove the screws that hold the back panel down.

    Its best to be careful when taking out the screws so that none of them chip, and it would be good advice to consider using similar tools if the current tool number isn’t working.

    Brett Kneeland -

  3. koG2WXUOveh2yR2B

    • Use an opening tool to remove the back panel.

    • Be careful when applying force to the panel so the components and the panel are not damaged.

    • Try to start at a corner or a place with the most room to slide under the panel.

  4. rVMeQt6HuomCYbAr

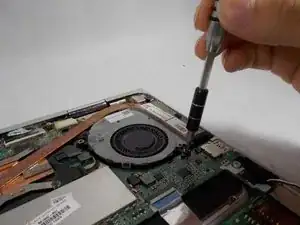

    • Use a Phillips #0 screwdriver to remove the screws from the fan.

  5. U5FtwnpOOgsTW2yX

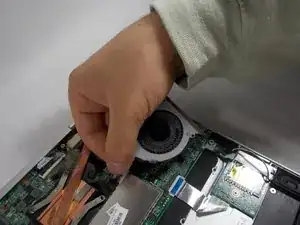

    • Disconnect the group of fan wires from the motherboard.

    • Lift the fan up to remove it from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
