HP Spectre x360 13-4103dx Wi-Fi Card Replacement

Geschrieben von: Andrew Medeiros

Kommentare: 3

HP Spectre x360 13-4103dx Wi-Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

4 - 10 Minuten

Einleitung

Werkzeuge

Schritt 1

Turn off your laptop before you start.
Flip your laptop so the bottom is facing upwards.

* Do so gently, so that none of the internal parts are damaged, Its best to try to clean the backside of a laptop with a wipe to get rid of any dust or debris.

Brett Kneeland -

Schritt 2

Use a Phillips #0 to remove the screws that hold the back panel down.

Its best to be careful when taking out the screws so that none of them chip, and it would be good advice to consider using similar tools if the current tool number isn’t working.

Brett Kneeland -

Schritt 3

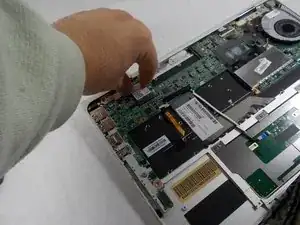

Use an opening tool to remove the back panel.
Be careful when applying force to the panel so the components and the panel are not damaged.
Try to start at a corner or a place with the most room to slide under the panel.

Schritt 4

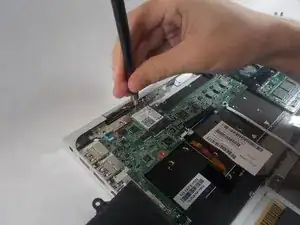

Remove the single screw from the Wi-Fi card using a Phillips #0 screwdriver.

* This screw in particular was very difficult to remove, so be advised that it may be hard to get the screw out properly, especially if the screw shows signs of rust.

Brett Kneeland -
