Einleitung
If there are issues reading from or writing to the Secure Digital (SD) memory storage on the laptop, then the SD port is defective. Use this guide to access, remove, and replace your SD port.
-
-
Carefully peel off the felt cover that is found beneath the display along the bottom of the device.
-
Use a spudger to gently scrape away the padding that hides the screws in each of the four locations.
-
Remove the four 4-mm Phillips #0 screws.
-
Run a spudger along the crease of the entire laptop and slowly pry off the back panel of the device, beginning with the bottom edge.
-
-
-

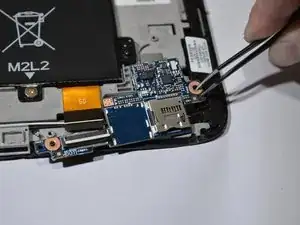

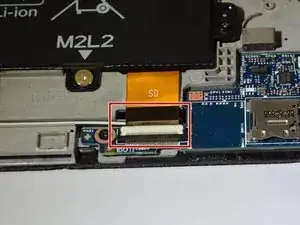

Remove the yellow ribbon labeled "SD" in the left corner of the SD port board using tweezers or a sturdy plastic opening tool.
-
To reassemble your device, follow these instructions in reverse order.
