HP Split x2 Trackpad Replacement

Remove the bumpers at the back of the keyboard part.

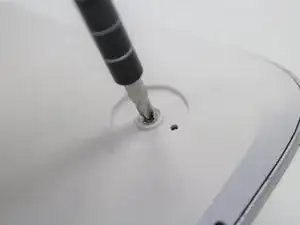

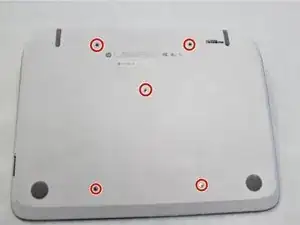

Use a J1 screwdriver head to remove the 7mm screws underneath the bumpers.

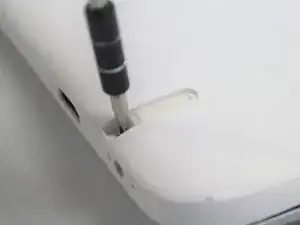

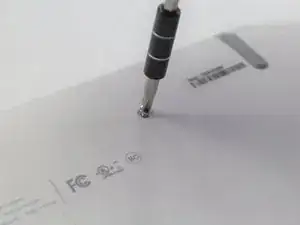

Use a J1 screwdriver head to remove the remaining 5mm screws at the back of the keyboard part.

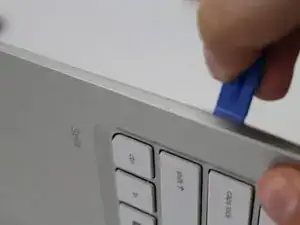

Use the opening tool to carefully remove the back cover of the keyboard.

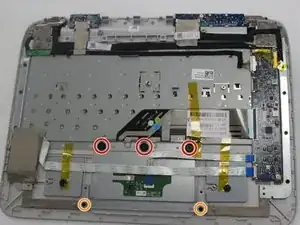

Use a J1 screwdriver head to remove the black 2mm screws along the top part of the trackpad

Using the same screwdriver head, remove the black 3mm screws along the bottom part of the trackpad

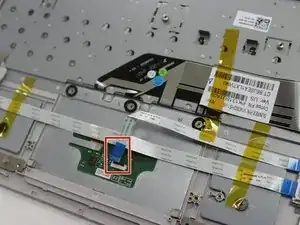

Disconnect the ribbon cable and move it out of the way.

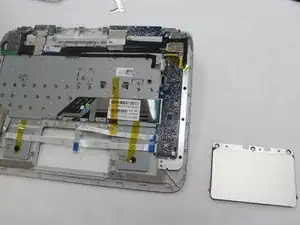

Slide the trackpad out from underneath the ribbon cables.
