Einleitung

TPN-Q166

11-AH006NA

  1. RVksBeRIjMZuVkJj
    RVksBeRIjMZuVkJj
    4KBLMyvw2t2hhkIU

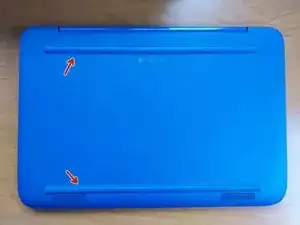

    • Remove the rubber feet of the laptop, to reveal the screws.

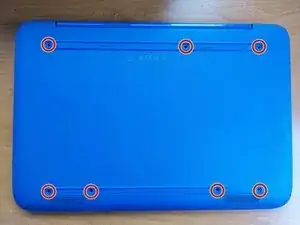

    • Remove the 7 screws holding the palmrest.

  2. hBMoGbWOBvZiIoTA
    hBMoGbWOBvZiIoTA
    RMIA2NASibc1aGpd

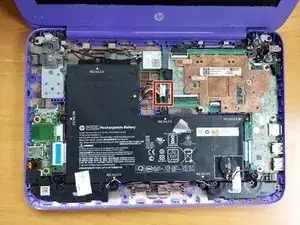

    • Use a prying tool to separate the palmrest from the bottom plate.

    • Disconnect the battery. And the connectors for the keyboard and touchpad, from the palmrest.

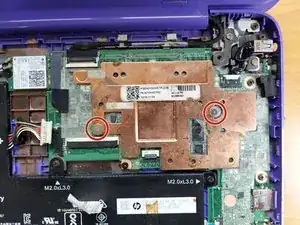

    • Remove the 2 screws that hold the passive cooling plate.

  3. CEtD1Dy5fNaNXLWY

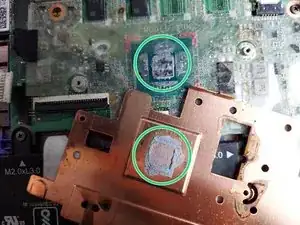

    • Clean the old thermal paste both from the cooler and the CPU. It is best to use isopropyl alcohol and cotton buds or paper towel, but be careful not to go too hard on the CPU.

    • Dont use too much thermal paste, just enough to cover some portion of the pad. If you have a spreader, use it. The thermal paste will apply evenly after you tighten the heatsink.

Abschluss

To reassemble your device, follow these instructions in reverse order.
