Einleitung
Warning: Batteries can be dangerous. Exercise extreme caution when using this guide.
Werkzeuge
-
-
Use a prying tool to pry the 2 rubber feet off closest to the hinge of the device
-
Repeat this process for the other side of the device
-
The bottom rubber feet do not have hidden screws underneath them, and as such, they are unnecessary to remove
-
-
-
Use your finger to pry the outer blue shell over the keyboard
-
Continue this process around the edges of the device
-
You may have to use a prying tool to pry the harder edges such as around the I/O ports
-
Do not lift the keyboard once all the clips are undone, as there are still various cables connected
-
-
-
Disconnect the power button connector by peeling back the protective tape, using your fingernail to flip the white retaining clip back, and pulling the ribbon cable out
-
Disconnect the touchpad connector by using your fingernail to flip the black retaining clip back, and pulling the ribbon cable out
-
Disconnect the keyboard connector by using your fingernail to flip the black retaining clip back, and pulling the ribbon cable out
-
Your keyboard assembly is now safe to remove
-
-
-

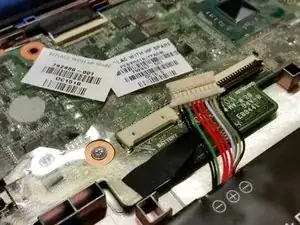

Locate the white plastic connector on the motherboard
-

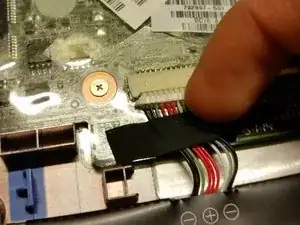

Peel back the black tape holding the cable's wires in place
-
Pull the white connector out by puling the white plastic away from the connector
-
Do not grab the connector by the wires
-
To reassemble your device, follow these instructions in reverse order.
