HP Stream 11-d008TU Heatsink Replacement

Use a prying tool to pry the 2 rubber feet off closest to the hinge of the device

Repeat this process for the other side of the device

The bottom rubber feet do not have hidden screws underneath them, and as such, they are unnecessary to remove

Remove the 11x 5mm Phillips PH-0 screws (circled)

Use your finger to pry the outer blue shell over the keyboard

Continue this process around the edges of the device

You may have to use a prying tool to pry the harder edges such as around the I/O ports

Do not lift the keyboard once all the clips are undone, as there are still various cables connected

Disconnect the power button connector by peeling back the protective tape, using your fingernail to flip the white retaining clip back, and pulling the ribbon cable out

Disconnect the touchpad connector by using your fingernail to flip the black retaining clip back, and pulling the ribbon cable out

Disconnect the keyboard connector by using your fingernail to flip the black retaining clip back, and pulling the ribbon cable out

Your keyboard assembly is now safe to remove

Unscrew the four 2.5mm M2x2.5 PH-0 Phillips head screws in reverse numerical order (4-3-2-1)

4: Bottom left | 3: Top Right | 2: Bottom Right | 1: Top Left

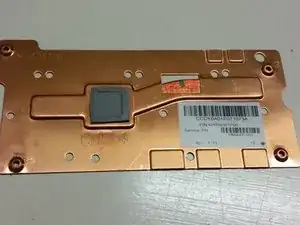

Lift the heatsink
