Einleitung

  1. mhLeOroi4o1gSiaL
    mhLeOroi4o1gSiaL
    aXissiuxMHnVnyhv
    R5JpagGiFurmULXW

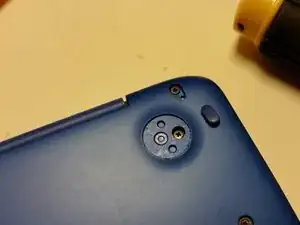

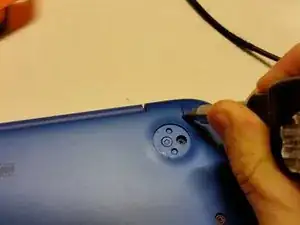

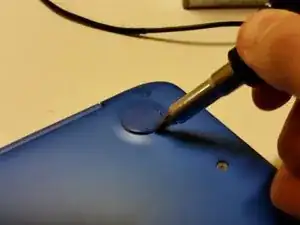

    • Use a prying tool to pry the 2 rubber feet off closest to the hinge of the device

    • Repeat this process for the other side of the device

    • The bottom rubber feet do not have hidden screws underneath them, and as such, they are unnecessary to remove

  2. 6RRdKsbmvSccYYgY
    6RRdKsbmvSccYYgY
    bdwNDBBKXNeQXfkm

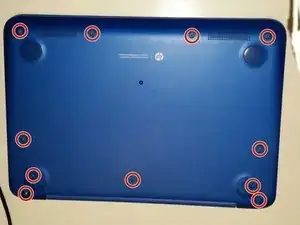

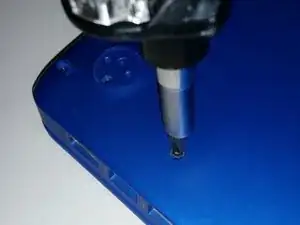

    • Remove the 11x 5mm Phillips PH-0 screws (circled)

  3. KDYLg1HSPW1iGHLY
    KDYLg1HSPW1iGHLY
    UBpOGMhs6fbJNmMg
    bThmWKZPTrFudDBV

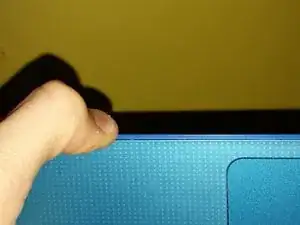

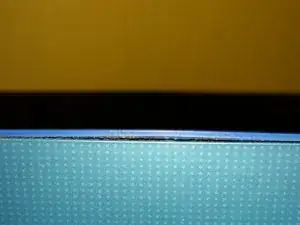

    • Use your finger to pry the outer blue shell over the keyboard

    • Continue this process around the edges of the device

    • You may have to use a prying tool to pry the harder edges such as around the I/O ports

    • Do not lift the keyboard once all the clips are undone, as there are still various cables connected

  4. JSc166JWVjQ23MuD
    JSc166JWVjQ23MuD
    MSRtMECXFXPKku61
    eY3LAV4ZKe6SdFP3

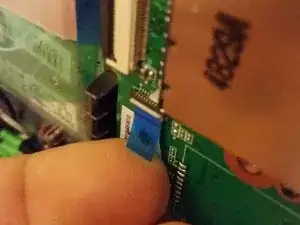

    • Disconnect the power button connector by peeling back the protective tape, using your fingernail to flip the white retaining clip back, and pulling the ribbon cable out

    • Disconnect the touchpad connector by using your fingernail to flip the black retaining clip back, and pulling the ribbon cable out

    • Disconnect the keyboard connector by using your fingernail to flip the black retaining clip back, and pulling the ribbon cable out

    • Your keyboard assembly is now safe to remove

  5. lZdoaLBaZEWiuZqB
    lZdoaLBaZEWiuZqB
    sycjwVZbjdA1VWUT

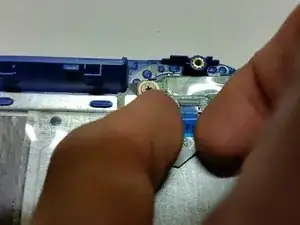

    • Remove the power button connector from the power button by flipping the white tab up and pulling the ribbon cable out

  6. oKWhMDJcZmvxMuC4
    oKWhMDJcZmvxMuC4
    U1Zs4SEv5GVuvMan
    LnGuYNTtjeTV5tPG

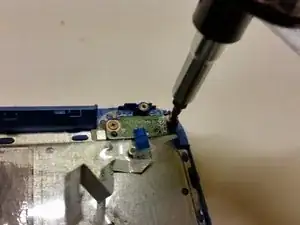

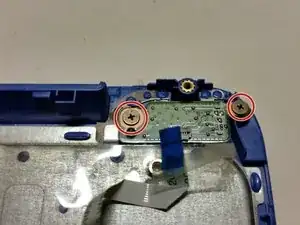

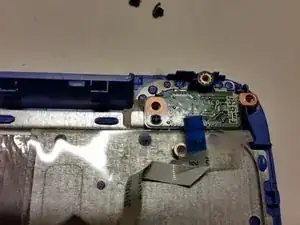

    • Unscrew the two Philips PH0 2.5mm screws

  7. TdsuI2EMrRbLXMIZ
    TdsuI2EMrRbLXMIZ
    vQ3pvuF4lrifGnTN
    DAjrsOGpkoVHf2pi

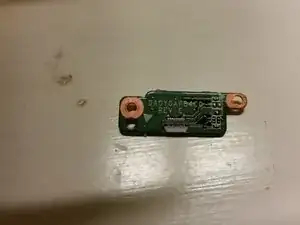

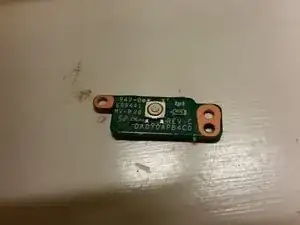

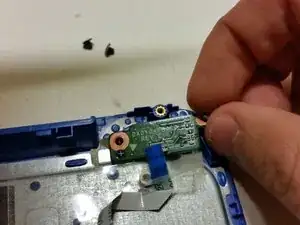

    • Lift the power button out of the slot

Abschluss

To reassemble your device, follow these instructions in reverse order.
