Einleitung

Computer not holding a charge? Tired of looking for outlets everywhere you go? Change your HP Stream battery!

  1. GkE34DpmMF5kMew3
    GkE34DpmMF5kMew3
    ld4VZwKroopM3kfw

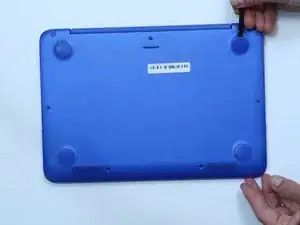

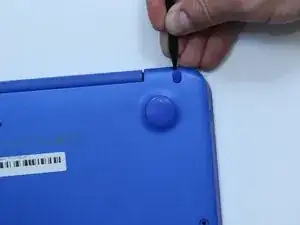

    • Use a plastic spudger to remove two oblong screw covers on the bottom of the computer.

    • Use a plastic spudger to remove four rubber feet.

    • To remove the feet you must break the glue seal holding them down.

  2. eghXkLTk6kWRKECE

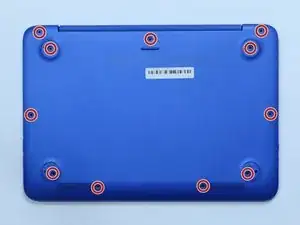

    • Remove the eleven 5 millimeter housing screws from the bottom of the computer using a #00 Phillips head screwdriver.

  3. 5vjyqTOTps2lU3Ng
    5vjyqTOTps2lU3Ng
    fRvCbaoEJcJsjbNX

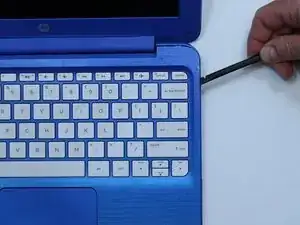

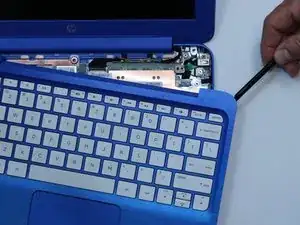

    • Turn the computer over and open it.

    • Use a plastic spudger to pry the keyboard bezel away from the base. Pry around the edge, being careful not to jam the spudger too far underneath the bezel (potentially damaging internal components).

    • The bezel is tightest near the hinge.

    • Once the bezel is free, do not lift it away from the base.

  4. HTNjAEacCxxoKFOq
    HTNjAEacCxxoKFOq
    dpDU5cMraTfJqbiB

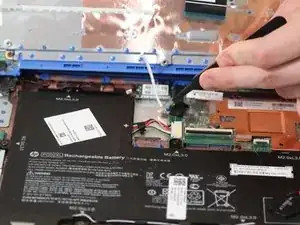

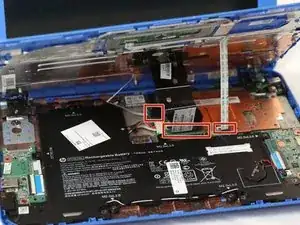

    • Identify two ribbon connectors and the ZIF cable underneath the keyboard.

    • Use tweezers to disconnect both ribbon cables and the ZIF connector.

  5. EiJYdkMBChaVO3Hp
    EiJYdkMBChaVO3Hp
    Hx32ngRQWuroCGIx

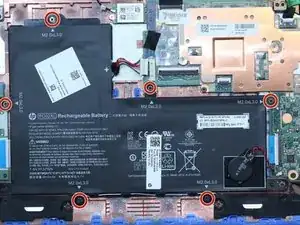

    • Use a Phillips #00 screwdriver to remove six 5 millimeter screws from the battery.

  6. rpSeqQyx6s5evKyI
    rpSeqQyx6s5evKyI
    wr6TXjJQ4xYSBjSd
    TSnnXN6Oc4EoaqCN

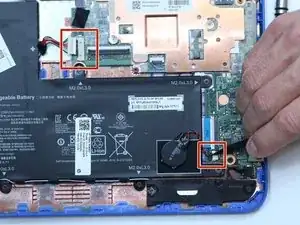

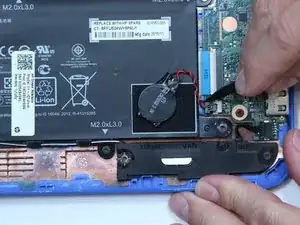

    • Use a plastic spudger to remove the two power connectors.

    • Lift the battery out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
