Einleitung

This guide will show the step by step process of disassembling the HP stream in order to remove and replace the screen.

  1. lyg1RAJQjJwrKk4l
    lyg1RAJQjJwrKk4l
    RMtjUeYACAr3PH4T
    • Turn off your HP Stream 11-r020nr by holding the power button down for 10 seconds.

    • Turn the device top down so the rubber feet are facing up.

    • Use a metal spudger to remove all the rubber feet off of the bottom of the device, including the small ones. There will be a total of 11 screws to remove.

  2. HpkQPtfxBiNXDoNR
    • Using the Phillips #1 screwdriver, remove all 11 of the the 5mm screws.

  3. 2Tx1LXQDevqsetVo
    2Tx1LXQDevqsetVo
    pHAkctDMukMTDWTg
    • Flip the laptop over and open the laptop.

    • Using the blue plastic opening tool, separate the keyboard plate from the main body by prying up starting around the bottom corners, prying the bottom up first and the sides second all the way around the whole keyboard plate.

    • Be gentle when lifting the keyboard up as there will be ribbon cables still attaching the keyboard to the base of the laptop.

  4. LPP6HXifJGhlSlww
    LPP6HXifJGhlSlww
    Be1juFecJ3Qwd4D6
    • Use the black nylon spudger to flip the black tab up that holds the ribbon cable in place.

    • Lift the ribbon cable free.

  5. hhDlLoUitm2LXDyS
    hhDlLoUitm2LXDyS
    CgVfQfAYQSnhORNd
    • Use the black nylon spudger to flip the black tab up that holds the large ribbon cable in place.

    • Pull the ribbon cable free from the base of the keyboard.

  6. dwURSdlwkH3ad63i
    dwURSdlwkH3ad63i
    gHSL3bTMIpSWTY1U
    • Remove the tape covering the ribbon cable.

    • Use the black nylon spudger to flip the black tab up that holds the ribbon cable in place.

    • Pull the ribbon cable away from the base of the laptop.

  7. 5dV1DoeBCesgcSGY
    • After detaching the two large ribbon cables, carefully lean the keyboard against the screen.

  8. iBY22q2RXdpCfXYc
    • Pull the power cable away with your fingers.

  9. gJRZFjPsRJsjQtYa
    • Using the Phillips #1 screwdriver, remove the 4 mm screw.

  10. U3jWsViHNlJWiALC
    • Lift and remove the charging port from the device.

  11. Ibwl6SG6jkU2jGOE
    Ibwl6SG6jkU2jGOE
    qEHmUymMmOAbDjWZ

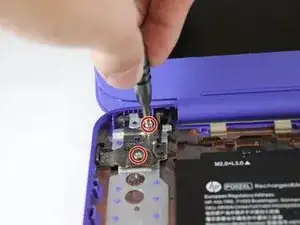

    RhvbZVf3LVkkYHfd

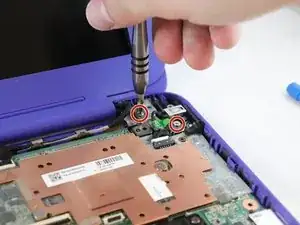

    • Remove the power port 4 mm screw.

    • Using the Phillips #1 screwdriver, remove a total four 5 mm hinge screws.

    • Lift the screen up and away from the device.

    • Be sure to take caution because there are two wires still attached to the base of the laptop.

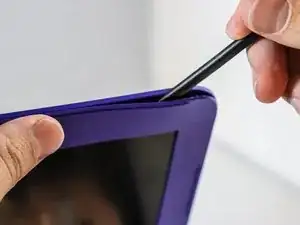

  12. DYuuwgZLuGXI1SCy
    DYuuwgZLuGXI1SCy
    NXJmfSjdyUZfmYWH
    1awycyOULVuBXBt3

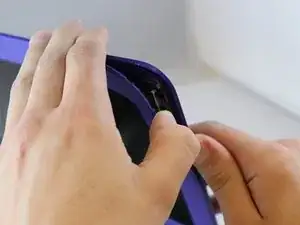

    • Using the black nylon spudger, lift the top right corner of the frame from the screen.

    • From there, you can make your way around the screen. You will feel the frame pop off one at a time.

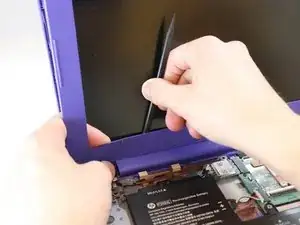

    • When you get to the bottom of the screen, place the plastic spudger between the screen and the frame and drag along the bottom to separate the adhesive.

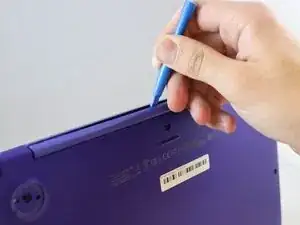

  13. nD1mIZtUJ4EZGJ1V
    • Flip the laptop to separate the frames using the small plastic opening tool.

    • You will hear a series of clicks as the screen pops apart

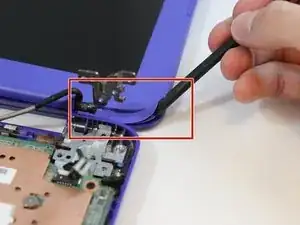

  14. k3ABPoEbyTqsxiJl
    k3ABPoEbyTqsxiJl
    ZnXsnoinRhOUgZyR

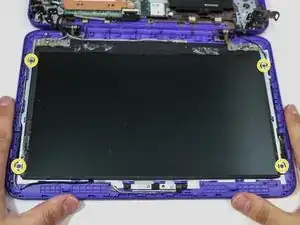

    jrykBm1kdyH5VZiW

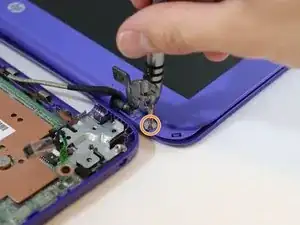

    • Using the plastic spudger, separate the cosmetic stickers from the bottom left and right of the frame.

    • Using the Phillips #0 screwdriver, remove two 2mm screws, one on each side. Then remove the plastic covering the edge of the screen.

    • Continuing with the Phillips #0 screwdriver, remove four 2mm screws that hold the screen in place.

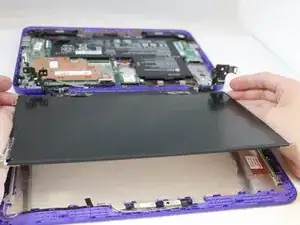

  15. 6Pcspmh3cHfTUEZr
    6Pcspmh3cHfTUEZr

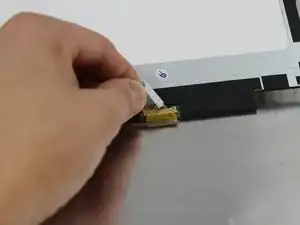

    AbQfybVDvbVEID1B

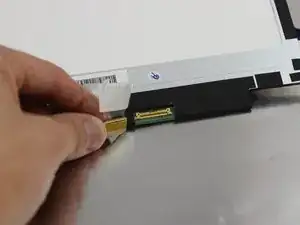

    XJbQTg2on2OgVl4O
    • Lift and flip the screen up to reveal the video cable.

    • Gently pull the tape connected to the video cable.

    • Disconnect the video cable and remove the screen from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
