HP Stream 11-y010nr Webcam Replacement

Geschrieben von: Adam Sitzmann
  • Kommentare: 2
HP Stream 11-y010nr Webcam Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

20 Minuten

Einleitung

Do you think there is an issue with your HP Stream 11-y010nr webcam? Is the webcam image coming out fuzzy or simply not working? The first thing that you should do is look over our troubleshooting page and see if you can diagnose the potential problem.  HP Stream 11-y010nr Troubleshooting

This guide will take you through the necessary steps to properly remove and replace the webcam. Prior to beginning, ensure the laptop is completely powered off such that it will not interfere with the steps in this guide.

  1. PYirvOgSBpiECY32
    PYirvOgSBpiECY32
    OFTPgIrePXHxyC4b
    M2s6D1bMLqQwamoD

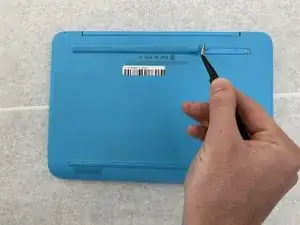

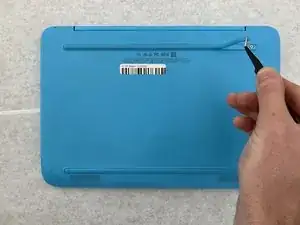

    • Gently peel back the two rubber strips that cover the screws on backside of the computer with the needle nose tweezers.

    • Ensure the laptop is turned off.

  2. JkJfQlpTYXLw5EOU
    JkJfQlpTYXLw5EOU
    MiWUBuWo16BxBeqV

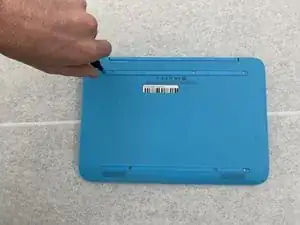

    • Unscrew the seven 0.4mm screws on the backside of the laptop with the Phillips #0 Screwdriver.

  3. GA1XAUdKeZ2JirQS
    GA1XAUdKeZ2JirQS
    BvhIOvdidllydcew

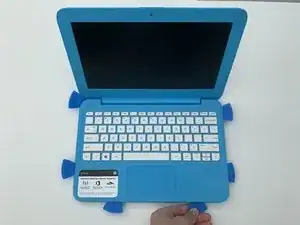

    • Take the opening picks and push them into the seam between the keyboard and the laptop casing.

    • Go all the way around the laptop.

  4. Ehc1phcUgaxaCaSx

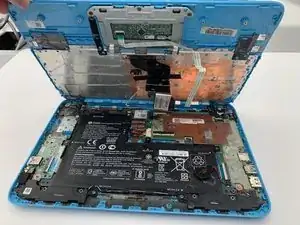

    • Once the cover is loose enough, lift the keyboard up to expose the wiring beneath.

    • Be careful not to pull too hard or fast as there are ribbon cables attached to the keyboard and trackpad.

  5. JFpLR5NWLE2QOyo5
    JFpLR5NWLE2QOyo5
    YpFJgQVuGvvFP6s4
    ABfRqahpqarAqBNP

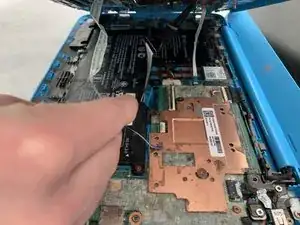

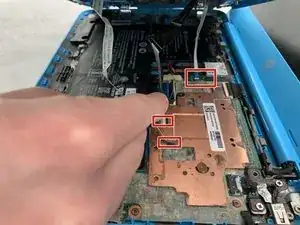

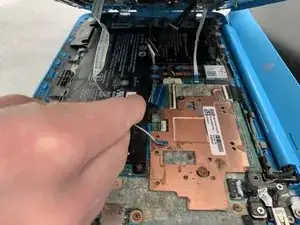

    • Disconnect the three cables by lifting up on the locking tab of the ZIF connector and pulling the cables out with the needle nose tweezers.

    • Remove the keyboard.

  6. utjisYQsGVlukQge
    utjisYQsGVlukQge
    xv35SNWYVAOkMK3o
    ZXLvDONNOC3tSTaR

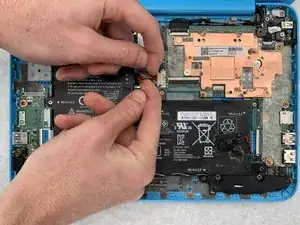

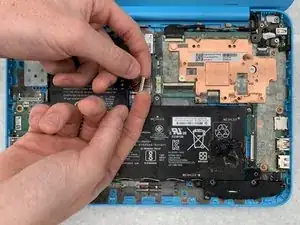

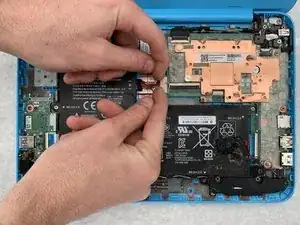

    • Use your fingers or a spudger to pull the battery cable out from its connector.

  7. cGKIdtDiJAuVqTQe
    cGKIdtDiJAuVqTQe
    U4VuyOpOlMXVrYoV

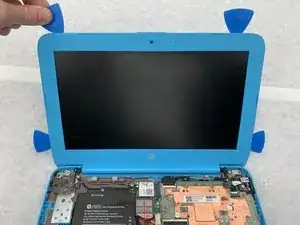

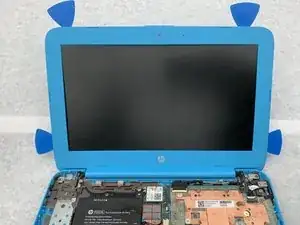

    • Insert iFixit opening picks into the edges of the screen to break seal between the screen and bezel.

  8. okxvjsIIVgR31riQ
    okxvjsIIVgR31riQ
    UFEVGGD3TXNR5NRx
    RtI1o6BUFGhxiaoT

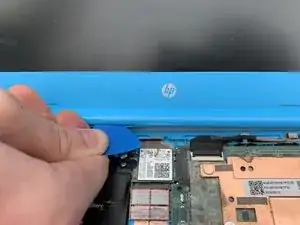

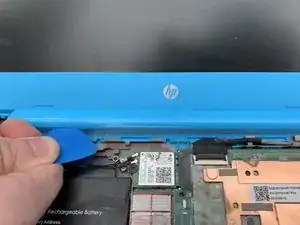

    • Peel the hinge up by sliding the iFixit opening picks left to right along the hinge.

  9. Z6OSLHXRBSiWYr2I
    Z6OSLHXRBSiWYr2I
    pilwE5pPUo1ijPZQ
    CTBRuCsVXsaXR1sL

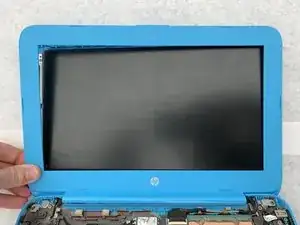

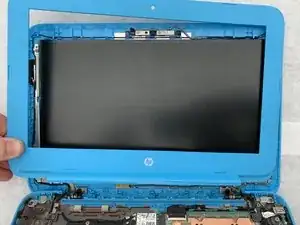

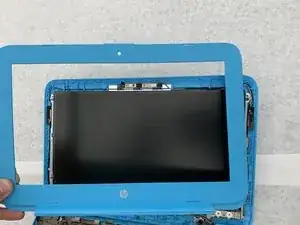

    • Remove the plastic bezel by pulling upwards on the bottom left corner.

  10. PEmtehqBeAmFHClX
    PEmtehqBeAmFHClX
    5YppAvs1yxZQ1sDJ
    F1MERmWe6RXh26Wr

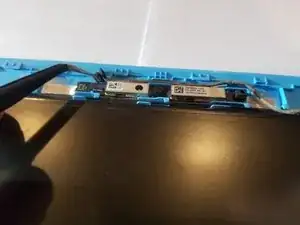

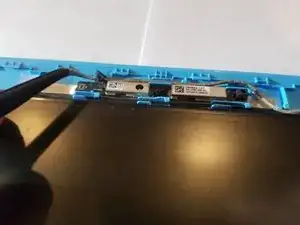

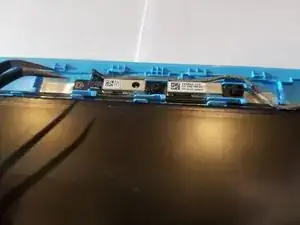

    • Take the tweezers and push up on the small connector to the left of the webcam.

  11. ATQcPTdYOCLWptWD
    ATQcPTdYOCLWptWD
    qFs5ogt2IRcBdDNR
    WuubLsBLa3cLfOaI

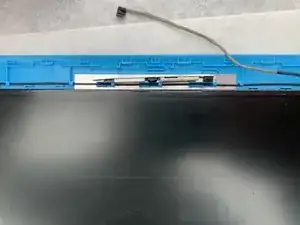

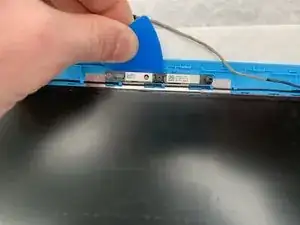

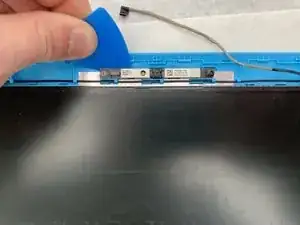

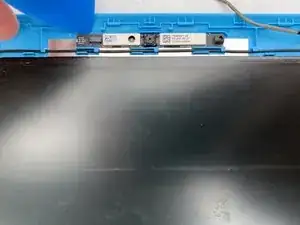

    • Take an iFixit opening pick and slowly remove the webcam by sliding it under the camera and prying the entire strip from the case.

    How should I use the opening tool to remove the webcam? Why do I need to know it’s held on by glue?

    Alex Watkins -

    When doing action shots of the top half of the computer, it may be beneficial to lay the screen part flat, and take the images from above, if the hinges make that possible.

    Kaylie Smith -

Abschluss

To reassemble your device, follow these instructions in reverse order.
