HP Stream 13 Battery Replacement

Geschrieben von: Nick Myers
  • Kommentare: 0
HP Stream 13 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

Quick 10min guide on how to replace the battery on the HP Stream 13

  1. oyWRDCYEcaNR4BsA

    • Flip the laptop over

  2. V1DO3qu34WrMDgOZ
    V1DO3qu34WrMDgOZ
    es2qZXVaBvtwxRXI

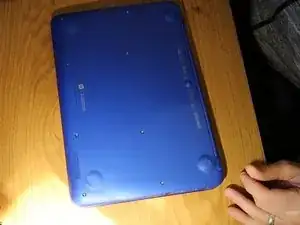

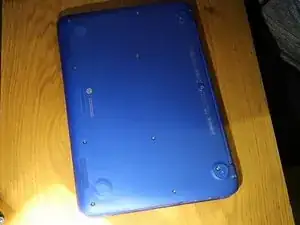

    • Remove the five screw covers across the back edge of the laptop

    • Remove the 13 screws that hold the base in place.

  3. WYIMc3NQXUeaUNMm

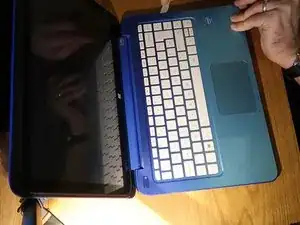

    • Carefully pry up around the edges of the laptop. Take your time around the ports as they can easily get damaged.

  4. HukQKLuJALYeYcwL
    HukQKLuJALYeYcwL
    jPEnyvAklEKcsntL

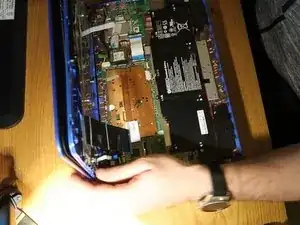

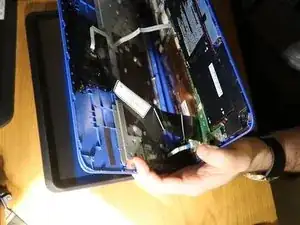

    • Slowley lift the top case/keyboard upwards and disconnect the three ribon cables.

  5. 2V3Xsq1XNJcIQIKe
    2V3Xsq1XNJcIQIKe
    XmpTiFYU3Ox6M4Nb

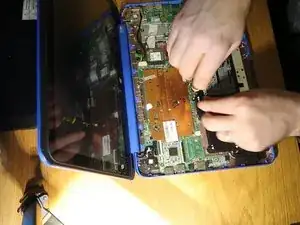

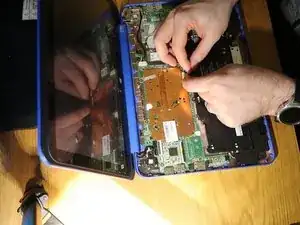

    • Disconnect the battery from the main board.

    • Unscrew the 8 screws holding the battery in place.

  6. OakUgO1Nw3aT2dXO

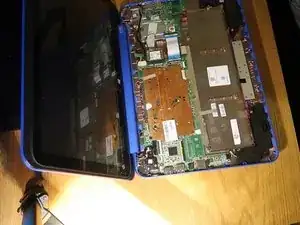

    • Lift the battery out and your done.

Abschluss

To reassemble your device, follow these instructions in reverse order.
