HP Stream 13-c010nr Charging Port Replacement

Geschrieben von: Keegan Lapham
  • Kommentare: 0
HP Stream 13-c010nr Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

25 Minuten

Einleitung

This guide will teach you how to replace the Charging Ports on the HP Stream 13-c010nr.

  1. iVwZWGvMqe1VSiE1

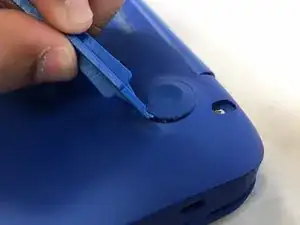

    • Remove the five rubber feet from the bottom of the laptop with a plastic opening tool.

  2. CohQtJvDwoc2oiBV
    CohQtJvDwoc2oiBV
    PUEfR2TbmGtCYP6E

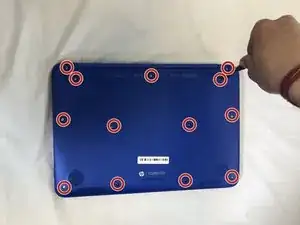

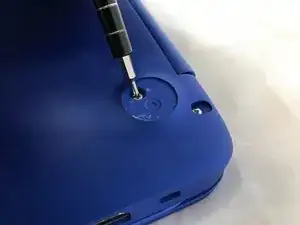

    • Remove the thirteen 5mm Phillips #0 screws from the bottom case.

  3. M5ccjpiQaC3gC4Jl
    M5ccjpiQaC3gC4Jl
    DdQdTFEpUAd5k1We

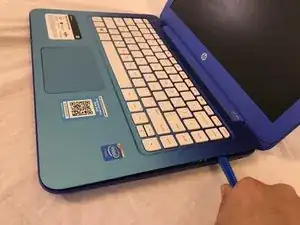

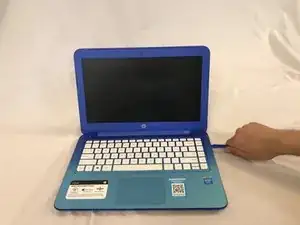

    • Flip the laptop over and open it up.

    • Wedge a plastic opening tool between the keyboard and bottom case, pry upwards to separate the two pieces.

    • Lift up the keyboard.

    • Ribbon cables still connect the two pieces.

  4. mPWXBBYMKnUOn5AO

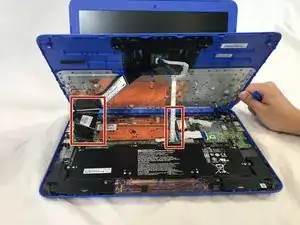

    • Use a spudger to flip up the retaining flaps on the keyboard ribbon cable ZIF sockets.

    • Pull up the ribbon cables from their sockets.

  5. 6dXJRPMfrYycEU1M

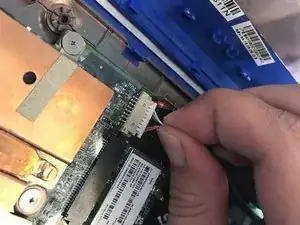

    • Disconnect the charging port from the motherboard.

  6. lAY64ESPbMlEstT5
    lAY64ESPbMlEstT5
    BW6oQgIVUguluCLc

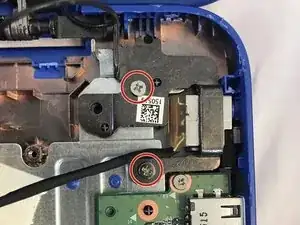

    • Remove the two 5mm Phillips screws from the charging port.

    • Remove the bracket.

    • Pull out the charging port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
