HP Stream 13-c010nr Display Replacement

Geschrieben von: Keegan Lapham
  • Kommentare: 0
HP Stream 13-c010nr Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

25 Minuten

Einleitung

This guide will show how to replace the display on the HP Stream 13-c010nr. If your screen is cracked or damaged, you can follow this guide to repair it.

  1. iVwZWGvMqe1VSiE1

    • Remove the five rubber feet from the bottom of the laptop with a plastic opening tool.

  2. CohQtJvDwoc2oiBV
    CohQtJvDwoc2oiBV
    PUEfR2TbmGtCYP6E

    • Remove the thirteen 5mm Phillips #0 screws from the bottom case.

  3. M5ccjpiQaC3gC4Jl
    M5ccjpiQaC3gC4Jl
    DdQdTFEpUAd5k1We

    • Flip the laptop over and open it up.

    • Wedge a plastic opening tool between the keyboard and bottom case, pry upwards to separate the two pieces.

    • Lift up the keyboard.

    • Ribbon cables still connect the two pieces.

  4. mPWXBBYMKnUOn5AO

    • Use a spudger to flip up the retaining flaps on the keyboard ribbon cable ZIF sockets.

    • Pull up the ribbon cables from their sockets.

  5. OevryAtpYlq4boM6

    • Remove the screw covers from the bottom corner edges of the screen.

  6. higW22x2ekwJgEsc
    higW22x2ekwJgEsc
    lpuxwKZ6WKOF1oJo

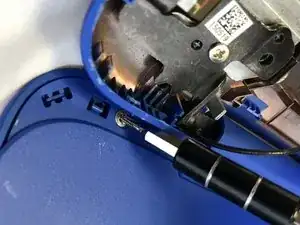

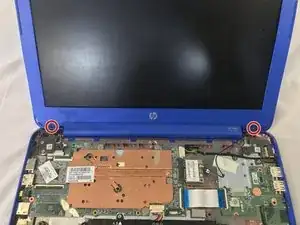

    • Remove the two 5mm Phillips #0 screws from the screen bezel.

  7. JiJtkEyNwFqPnhVD
    JiJtkEyNwFqPnhVD
    6rXJuSHJogVbgE6Y

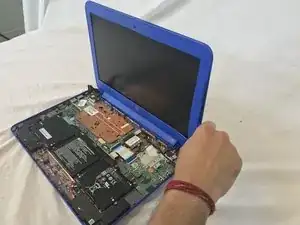

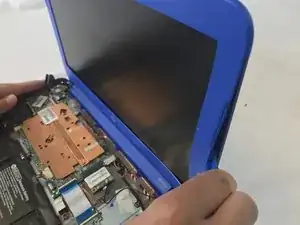

    • Wedge the plastic opening tool between the frame of the screen and the casing of the laptop.

    • Pry upwards on the plastic opening tool to separate the bezel from the display.

  8. fOAakAZTbtxlQW1E

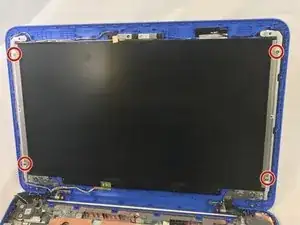

    • Remove the four 3mm Phillips #0 screws from the screen.

  9. aShuGTLxlIHPHaBE

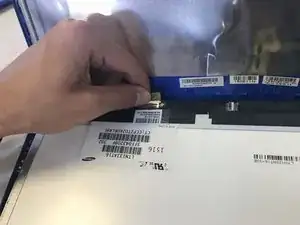

    • Use a spudger to flip up the retaining flap on the screen ribbon cable ZIF socket.

    • Pull the ribbon cable out of the ZIF socket.

    • Remove the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
