HP Stream 13-c010nr USB Port Replacement

Geschrieben von: Keegan Lapham
  • Kommentare: 0
HP Stream 13-c010nr USB Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

25 Minuten

Einleitung

This guide will teach you how to replace the USB Ports on the HP Stream 13-c010nr.

  1. iVwZWGvMqe1VSiE1

    • Remove the five rubber feet from the bottom of the laptop with a plastic opening tool.

  2. CohQtJvDwoc2oiBV
    CohQtJvDwoc2oiBV
    PUEfR2TbmGtCYP6E

    • Remove the thirteen 5mm Phillips #0 screws from the bottom case.

  3. M5ccjpiQaC3gC4Jl
    M5ccjpiQaC3gC4Jl
    DdQdTFEpUAd5k1We

    • Flip the laptop over and open it up.

    • Wedge a plastic opening tool between the keyboard and bottom case, pry upwards to separate the two pieces.

    • Lift up the keyboard.

    • Ribbon cables still connect the two pieces.

  4. mPWXBBYMKnUOn5AO

    • Use a spudger to flip up the retaining flaps on the keyboard ribbon cable ZIF sockets.

    • Pull up the ribbon cables from their sockets.

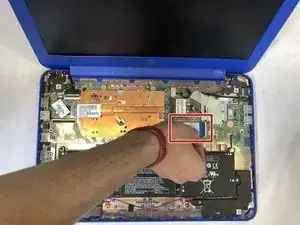

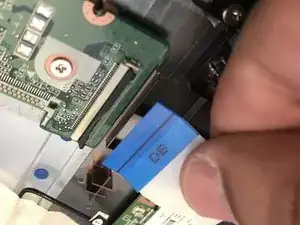

  5. GPsYbUCLGaoGMsIU
    GPsYbUCLGaoGMsIU
    EOp6enLaSy3tm66M

    • Use a spudger to flip up the retaining flap on the USB port ribbon cable ZIF socket.

    • Pull the ribbon cable out of the socket.

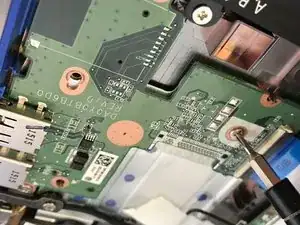

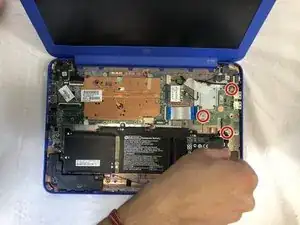

  6. SWDnwxUTkXWDxnkc
    SWDnwxUTkXWDxnkc
    vIeoogEVPKHBxFyp

    • Remove the three 3mm Phillips #0 screws from the USB port.

    • Pull out the USB port.

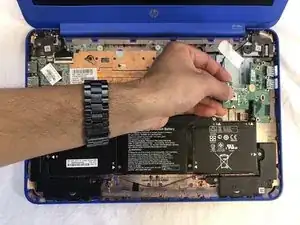

  7. oUYRfUbc4u464jtg

    • Remove the chip containing the two USB Ports.

Abschluss

To reassemble your device, follow these instructions in reverse order.
