The Display Assembly repair guide will assist users to repair the monitor of the HP Stream 13-c110nr. The guide will also provide steps to remove the WLAN and camera assembly.

  1. h2mJqLZ15wONOVQW
    • Close the device.

    • Remove AC adapter plug from electrical outlet.

    • Remove AC adapter from device.

    • Turn the device off.

    • Unplug all external devices from device.

    • If you are unsure whether the computer is off or in hibernation mode, start the computer and then shutdown the operating system.

  2. AYaOQMYexydDZ3fC
    • Turn the device upside down with the back facing towards you.

  3. ETnJiZWqoQyTZqIC
    ETnJiZWqoQyTZqIC
    SFaALv2MMTDVSuvW
    TP3gZUpcPs5EVqCd
    • Use a pick to remove the two (2) large computer feet along the back edge of the device.

    • Use a pick to remove the two (2) small computer feet.

    • Use a pick to remove the one (1) screw cover.

    • Place rubber computer feet in safe place for reassembly.

  4. uTSHQNEEoJYHYC6q
    uTSHQNEEoJYHYC6q
    5qjcMprZ1TRwSR5d
    WZdRVeuxUc6ugSiZ
    • Remove the thirteen (13) Phillips P0 PM2.5x6.0 mm screws.

    • Place the thirteen (13) screws on magnetic mat for reassembly.

  5. t6YAtjP5nwGoZayj
    • Turn the device over with the front facing towards you.

    • Open the device as shown.

  6. OJsrIM3VB2JmqHEG
    OJsrIM3VB2JmqHEG
    AothiSHKUXNS11iT
    FmFJDEnKRN16THkX
    • Insert the Spudger between the Top Cover and Bottom Cover to lift the front edge until it separates from the Bottom Cover.

    • Do not completely remove the Keyboard/Top cover from the Bottom cover yet.

  7. HRNqRUBhjXnXpqfi
    • Disconnect the Touchpad cable.

  8. DYiXSvHwtwNmELJq
    DYiXSvHwtwNmELJq
    yYPcqYciJDS4B45V
    • Disconnect the Keyboard Cable.

  9. 1u1ywkQOGZRSTICj
    1u1ywkQOGZRSTICj
    QnhRHjHKOjsLX4MN
    • Disconnect the Power connector cable.

  10. 5bFaloeknFkjiNMB
    • Remove the Keyboard/Top Cover from the device.

  11. G2uKfqEC62BwDBIv
    • Disconnect the Display Cable from the System Board.

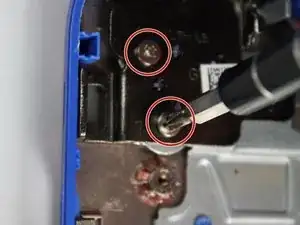

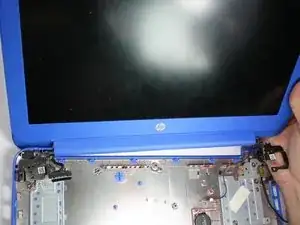

  12. UaPLnd3xlMVBSSDB
    UaPLnd3xlMVBSSDB
    GGxOKG651ReYSKlU
    syGiMs2WoCfI13N4
    • Remove the four (4) Phillips P0 PM2.5x4.5 mm screws from the screen retaining brackets.

    • Place the four (4) screws on the magnetic mat for reassembly.

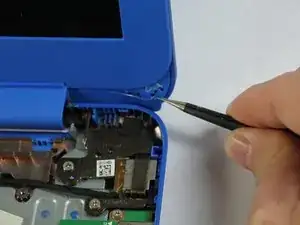

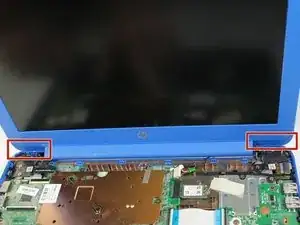

  13. hsgRBDKPqBDLnQQC
    hsgRBDKPqBDLnQQC
    MjPYc6PXtVkysneL
    • Peel off two (2) stickers located at the bottom corners of the display assembly.

    • Place two (2) stickers in safe place for reassembly.

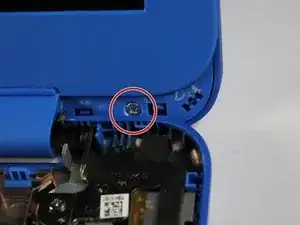

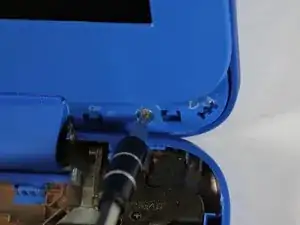

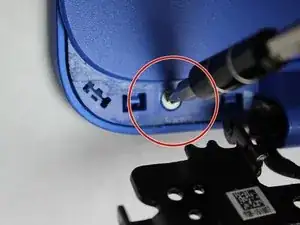

  14. SCpNfjerCKGGUBXj
    SCpNfjerCKGGUBXj
    EhU1nCHtLqeg3bi3
    HbxWL4ITFGRDHXTN
    • Remove the two (2) Phillips P0 PM2.5x2.0 mm screws.

    • Place the two (2) screws on the magnetic mat for reassembly.

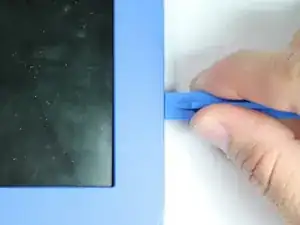

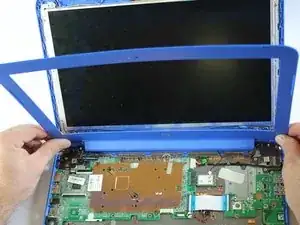

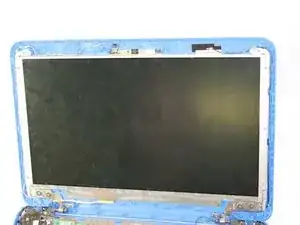

  15. igMerDjOOIAqQYUP
    igMerDjOOIAqQYUP
    CYnkVPHKrYHAtI6p
    GA1cBaYdMBKyegDe
    • Use a pick to pry off the display cover from the display.

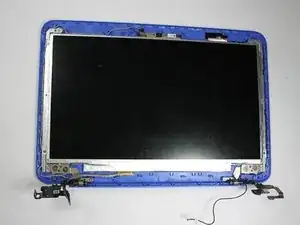

  16. cFxaV5BrhDUFuWNU
    • Remove the Display Assembly.

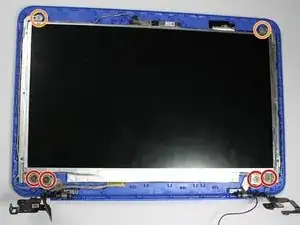

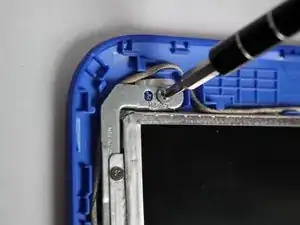

  17. 4HqWVPRPwLQ4aDVG
    4HqWVPRPwLQ4aDVG
    kbiMZLORFo5wLBcx
    • Remove the four (4) Phillips P0 PM2.5x4.5 mm screws.

    • Place four (4) screws on magnetic mat for reassembly.

    • Remove the two (2) Phillips P0 PM2.5x3.0 mm screws.

    • Place two (2) screws on magnetic mat for reassembly.

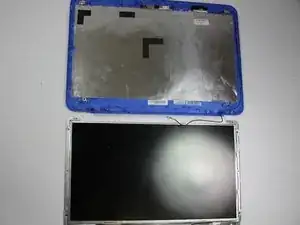

  18. aUj3Vlx4NB6Nm4bT
    • Separate display from back cover

Abschluss

To reassemble your device, follow these instructions in reverse order.
