HP Stream 13-c110nr USB/Card Reader Board Replacement

Geschrieben von: Stacey Deel
  • Kommentare: 1
HP Stream 13-c110nr USB/Card Reader Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

20 Minuten

Einleitung

The USB/SD card reader repair guide will assist the user in removal and installation for the HP Stream 13-c110nr.

  1. h2mJqLZ15wONOVQW

    • Close the device.

    • Remove AC adapter plug from electrical outlet.

    • Remove AC adapter from device.

    • Turn the device off.

    • Unplug all external devices from device.

    • If you are unsure whether the computer is off or in hibernation mode, start the computer and then shutdown the operating system.

  2. AYaOQMYexydDZ3fC

    • Turn the device upside down with the back facing towards you.

  3. ETnJiZWqoQyTZqIC
    ETnJiZWqoQyTZqIC
    SFaALv2MMTDVSuvW
    TP3gZUpcPs5EVqCd

    • Use a pick to remove the two (2) large computer feet along the back edge of the device.

    • Use a pick to remove the two (2) small computer feet.

    • Use a pick to remove the one (1) screw cover.

    • Place rubber computer feet in safe place for reassembly.

  4. uTSHQNEEoJYHYC6q
    uTSHQNEEoJYHYC6q
    5qjcMprZ1TRwSR5d
    WZdRVeuxUc6ugSiZ

    • Remove the thirteen (13) Phillips P0 PM2.5x6.0 mm screws.

    • Place the thirteen (13) screws on magnetic mat for reassembly.

  5. t6YAtjP5nwGoZayj

    • Turn the device over with the front facing towards you.

    • Open the device as shown.

  6. OJsrIM3VB2JmqHEG
    OJsrIM3VB2JmqHEG
    AothiSHKUXNS11iT
    FmFJDEnKRN16THkX

    • Insert the Spudger between the Top Cover and Bottom Cover to lift the front edge until it separates from the Bottom Cover.

    • Do not completely remove the Keyboard/Top cover from the Bottom cover yet.

  7. HRNqRUBhjXnXpqfi

    • Disconnect the Touchpad cable.

  8. DYiXSvHwtwNmELJq
    DYiXSvHwtwNmELJq
    yYPcqYciJDS4B45V

    • Disconnect the Keyboard Cable.

  9. 1u1ywkQOGZRSTICj
    1u1ywkQOGZRSTICj
    QnhRHjHKOjsLX4MN

    • Disconnect the Power connector cable.

  10. 5bFaloeknFkjiNMB

    • Remove the Keyboard/Top Cover from the device.

  11. QNxLNrG1cYxWuxNQ
    QNxLNrG1cYxWuxNQ
    HSVs65jgNMmKvXKW

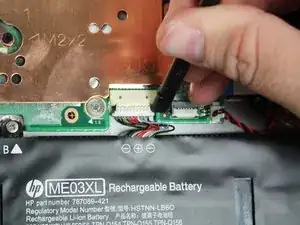

    • Use a pick to detach the Battery assembly cable.

  12. X3lxLQBlqWZaT5Oo
    X3lxLQBlqWZaT5Oo
    NIhaYI1UgJfkNsbB

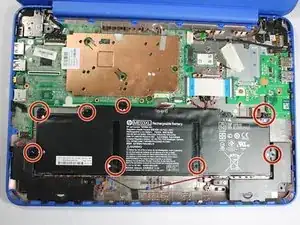

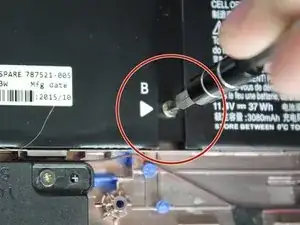

    • Remove eight (8) Phillips P0 PM2.0x3.0 mm screws from Battery assembly.

    • Place eight (8) screws on magnetic mat for reassembly.

  13. 2DIlh6FnOKUwl4JT

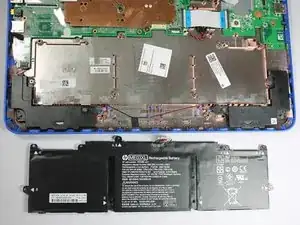

    • Remove Battery Assembly from device.

    ল্যাপটপের ব্যাটারির দাম কত

    raselamiyakhana1 -

  14. VeUEinQeSCDeDkHK
    VeUEinQeSCDeDkHK
    ywOiHvxkcfAGlbNB

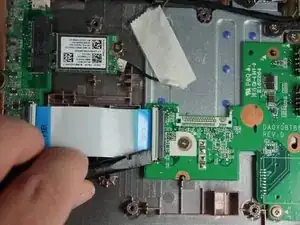

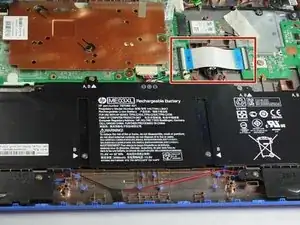

    • Use a pick to disconnect the USB/Card Reader cable from the System Board.

  15. 4vMU4vtWwFsOlEFa
    4vMU4vtWwFsOlEFa
    XLUYLCqmtXBZdHJ4

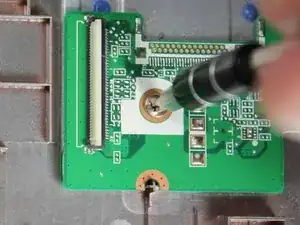

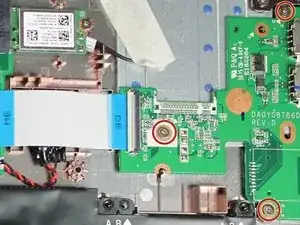

    • Remove three (3) Phillips P0 PM2.0x3.0 mm screws.

    • Place three (3) screws on magnetic mat for reassembly.

  16. ruIo6NkBEhMMDylP
    ruIo6NkBEhMMDylP
    wQFwnNM1BExOhcQZ

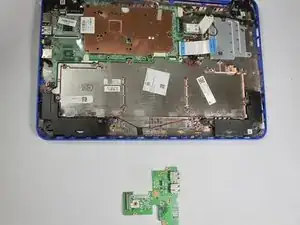

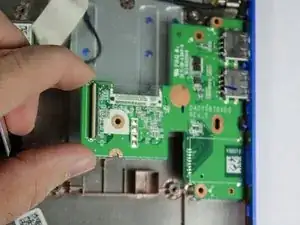

    • Remove the USB/Card Reader board assembly from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
