HP Stream 8 Display Panel Cable Replacement

Geschrieben von: Ashley Eimers
  • Kommentare: 0
HP Stream 8 Display Panel Cable Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

7 Minuten

Einleitung

The guide details how to replace the display panel cable. The cable is important for the communication throughout the HP Stream 8.

  1. EmvJGidvMOESDVYr

    • Use your nail to pry up the back cover of the device.

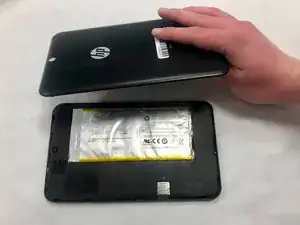

  2. dlSiSpf1cEThaDhc

    • Fully remove the back cover.

  3. 23J5tNpaS5HeqvM4
    23J5tNpaS5HeqvM4
    bNHNDZNZavZn54PR
    EFUtHEjvAuW6aCIr

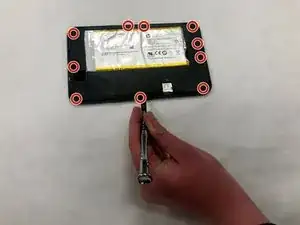

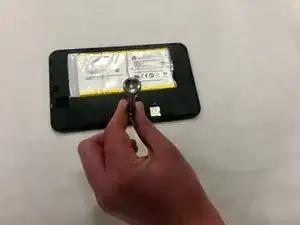

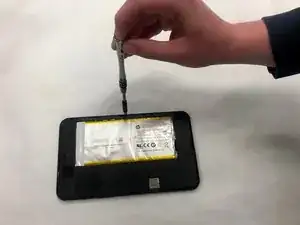

    • Remove the 10 3mm screws using the Phillips #00 screwdriver.

  4. FcAGZdPpRnsZc3SE
    FcAGZdPpRnsZc3SE
    kFLomDGYVcwTdBXW

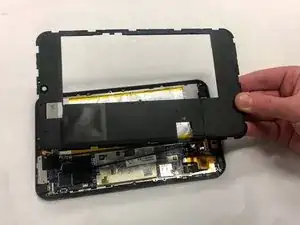

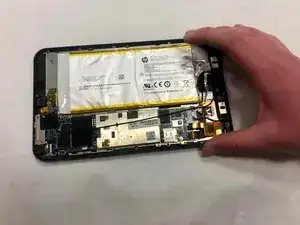

    • Pry up the inside cover the same way as you did with the back cover.

  5. BsHSLOcmPVTlINUk

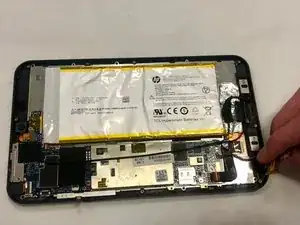

    • Remove the USB flex ribbon cable from the connection point.

  6. IRqKO5kIsPptGjfX
    IRqKO5kIsPptGjfX
    Q4JfnWTN45NUZW3t

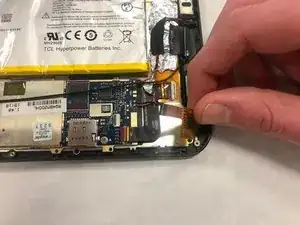

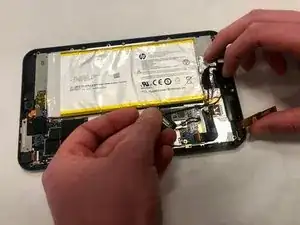

    • Carefully disconnect the display panel cable from the system board.

  7. Xowyjd1SKWbm4Bxs

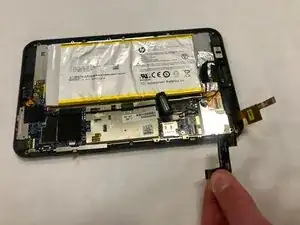

    • Remove the display panel cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
