HP TouchPad Battery Replacement

Geschrieben von: Andrew Bookholt

Kommentare: 15

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

1 - 2 Stunden

Einleitung

Use this guide to replace a worn-out battery.

Werkzeuge

Ersatzteile

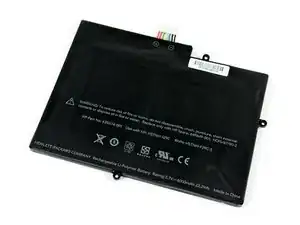

HP TouchPad Battery

Schritt 1

In the following steps, you will use a metal spudger to lift the front panel out from the rear case of your TouchPad.
The front panel is held in by seven clips (boxed in red) that are lightly anchored to the rear case. When you remove the front panel assembly, you are bound to break either the clips or their supports attached to the rear case. We will update this guide as we find replacement parts or a better method to remove the panel.
As you remove the front panel assembly, also be careful not to damage the ambient light sensor (boxed in yellow) or the two antennas (boxed in orange).

Beware of the ribbon cable right beneath the volume rocker, as it's easy to shear that cable if you are too rough with the metal spudger.

Michael Innes -

I wasn’t happy with using a metal spudger as it felt a bit forceful, as I have a bulk pack of opening tools I tried using them instead.

I may have been lucky, but by using those tools instead with the angled lip facing inwards at points adjacent to where the mounting clips are located according to the above image (like this, https://i.imgur.com/dylp6BG.jpg ), I managed to open the unit without breaking a clip or scratching the plastic back panel by bending the outside of the panel enough to pop the lcd panel.

Michael Sim - 19/05/18

Schritt 2

Insert a flat metal spudger in the gap between the rubber outer ring on the front panel assembly and the black plastic rear case near the USB connector.
Pry the front panel assembly up from the rear case, being careful not to damage the LCD or the glass panel.
As you work through the following steps, insert your metal spudger and pry the front panel up, but do not try to slide the spudger along the gap you're creating. Always remove your spudger, then insert it at another spot and pry upward.

Schritt 3

As in the previous step, use a spudger to pry the front panel up from the rear case along its long edge on the volume button side of the TouchPad.
Continue to pry the front panel assembly up along the volume button side of the TouchPad until there is a gap between it and the rear case.

Schritt 4

Pry up the front panel assembly along the top edge of the TouchPad.
Be careful not to damage the ambient light sensor or the upper antenna.

Schritt 5

Pry up the front panel along the edge closest to the home screen button.

Schritt 6

Before lifting the free side of the front panel up from the rear case, you may need to release it from the plastic retaining clips holding it down.
Use your metal spudger to pull the stuck retaining clips away from the edge of the front panel.

Schritt 7

After freeing the retaining clips, lift the front panel assembly away from the rear case.
Do not try to remove the front panel assembly from the TouchPad just yet, as it is still connected to the motherboard.

Schritt 8

Use the attached black tab to pull the display data cable straight up and out of its socket on the motherboard.
Pull the cable upwards and not parallel to the face of the motherboard. Doing otherwise may damage the socket on the motherboard.
Take care not to pull on the ribbon that is stuck by adhesive to the bottom of cable you are detaching. It does not need to be disconnected.

The ribbon can be adhered to other parts placed under it. You'll have to separate them tighly so you don't damage the ribbon.

Laurent -

Schritt 9

Use your fingernail to carefully flip up the retaining flaps on the two digitizer ribbon cable ZIF sockets.
Be sure you are prying up on the hinged retaining flaps, not the sockets themselves.
Pull the digitizer ribbon cable straight out of its two sockets on the motherboard.

Schritt 10

Remove the front panel assembly from the rear case assembly.

Schritt 11

Use the edge of a plastic opening tool to peel up the two pieces of copper tape covering the USB connector board near the battery and the motherboard.

Schritt 12

Remove the four 3.2 mm Phillips screws securing the USB connector board to the rear case.

Schritt 13

Pry the upper end of the USB connector board upwards to disconnect it from its socket on the logic board.

Schritt 14

Pull the USB connector board away from the bottom edge of the rear case and lift, but do not remove it out of its housing.
The USB connector board is still attached to the vibrator motor. Do not completely remove the USB connector board just yet.

Schritt 15

Pull the vibrator motor connector straight away from its socket on the USB connector board.
Remove the USB connector board from the TouchPad.
NOTE: First verify that there is a connector before pulling! The vibrator motor may be soldered directly to the USB Board requiring the motor to be pried up and removed together with the board.

This piece may be soldered. If that is the case, just leave it connected and move the USB connector board aside

combsste -

Schritt 16

If present, remove the two pieces of tape boxed in red.

Schritt 17

Use the edge of a plastic opening tool to flip up the retaining flap on the volume control/power button ribbon cable socket.
Be sure you are prying up on the hinged retaining flap, not the socket itself.
Pull the cable out of its socket.

Schritt 18

Use a plastic opening tool to lift the camera connector up and out of its socket on the motherboard.
Bend the camera cable away from the motherboard.

Schritt 19

Carefully flip up the retaining flap on the microphone cable socket.
Be sure you are prying up on the hinged retaining flap.
Pull the microphone cable out of its socket.

Its just a reminder when you're repairing your touchpad back to the way it was ( reversing the steps) It might be difficult to place your microphone ribbon back into its socket. Would advise to use some sort of device ( like tweezers) to help place it back inside its socket. Just be gentle.

Frank Booker - 03/05/14

Schritt 20

Use your plastic opening tool to pry the upper antenna connector up from its socket on the motherboard.

Schritt 21

Pry up the retaining flap on the headphone jack ribbon cable socket.
Be sure you are prying up on the hinged retaining flap.
Pull the headphone jack ribbon cable out of its socket.

Schritt 22

Pry the speaker cable connector up from its socket on the motherboard.
Pry up from beneath the wires.

Schritt 23

Use a plastic opening tool to flip up the retaining flap on the digitizer board ribbon cable socket.
Be sure you are prying up on the hinged retaining flap, not the socket itself.
Pull the digitizer ribbon cable out of its socket.

Schritt 24

Pry up the lower antenna cable connector from its socket on the motherboard.

Schritt 25

De-route the lower antenna cable along the top edge of the battery and carefully pull it out from under its retaining clip near the top right corner of the battery.

Schritt 26

Remove the eight 3.2 mm Phillips screws securing both the battery and the motherboard to the rear case.

Schritt 27

Use a plastic opening tool to pry the battery up from the tape securing it to the rear case.
It is easiest to pry up along the edges of the battery closest to the USB connector and the digitizer board.

The battery may be tightly adhered to the copper foil beneath. Take care not to damage this foil or the battery charging coil beneath it.

jsifert Macs -

Schritt 28

Lift the motherboard assembly out of the rear case, minding any cables that may get caught.

ok but wat abt d battery man

harineteddy - 16/11/15

Schritt 29

Carefully pull the battery away from the L-shaped motherboard to disconnect its cable.
Remove the battery from the motherboard.

Schritt 30

Battery remains.

Great Photos! My battery is completely dead, so now I'm going to order a new one. Would love to find a writeup on hoiw to shock this old battery back to life while out of the computer. Any suggestions?

Dixon Hoyle - 25/02/17

This is not an easy exercise. There are numerous small parts and connectors. Even stuff I could see I broke.

Garry Romanetz - 05/06/19

Abschluss

To reassemble your device, follow these instructions in reverse order.
