HP Touchsmart IQ506 CMOS Battery (Shortcut)

Geschrieben von: Nick
  • Kommentare: 1
HP Touchsmart IQ506 CMOS Battery (Shortcut)

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

30 Minuten

Einleitung

Is the CMOS battery in your HP IQ506 dead (or you need to quickly diagnose a motherboard or BIOS setting problem) this guide will show you how to quickly replace the battery without completely disassembling the system.

Note: While this method eliminates the need to disassemble the system, this procedure is slightly more difficult. If you are unsure this will work for you, disassemble the system to avoid dropping the battery behind the EMI shield. THIS IS AN INTERMEDIATE SKILL REPAIR.

Note: ESD safe tweezers are highly recommended for this procedure. If you do not use these and touch a component of the motherboard it may cause significant damage.

If you drop the CMOS battery, follow this guide to remove it from the system: IQ500 Series full disassembly. Read this before attempting this battery replacement method so you can decide which method you want to use.

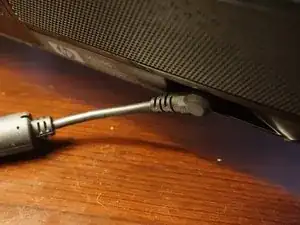

  1. JNgVpnvWJe6MWeip
    JNgVpnvWJe6MWeip
    SCpMHM53sArJ2X5h

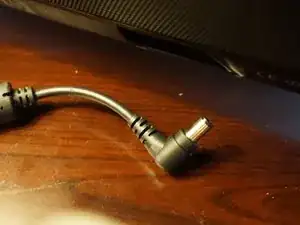

    • Shut the computer down and unplug the power adapter.

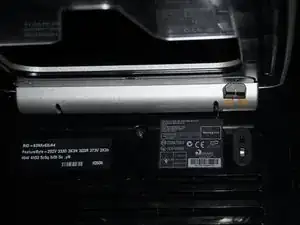

  2. d6YxvXpHEGwPPxkR

    • Lock the system stand before starting. Hold the stand up, while pushing the locking tab towards the side that locked side.

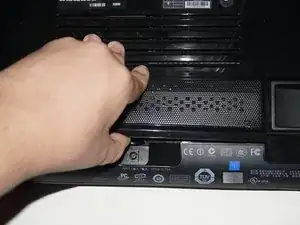

  3. MpNEODApQ6gnIEA4
    MpNEODApQ6gnIEA4
    ph2rT3WOydnKDbJv
    xNPtEFTysWIWSMZR

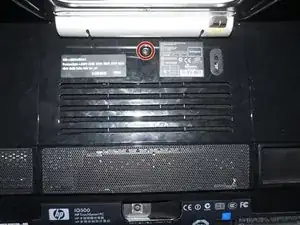

    • Remove the screw on the RAM door. Once you remove the screw, unclip the door.

  4. psQCWunHLXuqeRn2
    psQCWunHLXuqeRn2
    WShhOWwpFnAcSUyw

    • Unclip the RAM from the RAM slots in the machine. If possible, put the RAM in a ESD safe area.

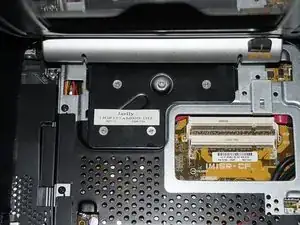

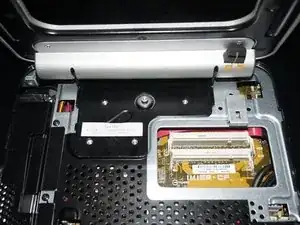

  5. LNTHMRtuGvwiGBxo
    LNTHMRtuGvwiGBxo
    cDoPOcMF34UbZ4XW
    V3Y5abW1H1HgbCEG

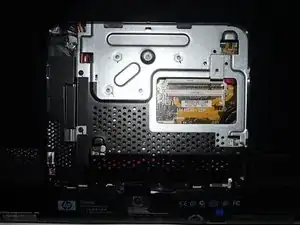

    • Remove the 4 screws from the stand. Once removed, remove it from the system.

  6. crBHhPME6uEJMSOa
    crBHhPME6uEJMSOa
    2N5UFQgjc5bVgbFY

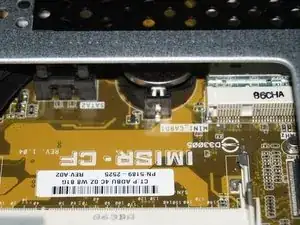

    • This is when the guide starts to get advanced. DO NOT continue unless you know how to disassemble the system, just in case the battery falls in! Make sure you use blunt ended tweezers for this.

    • Unclip the top of the battery using your fingernails. You do not need to use tweezers yet.

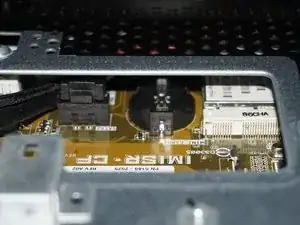

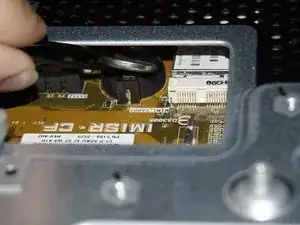

  7. NvYBbW4mADTMxEVu
    NvYBbW4mADTMxEVu
    klkyUf1CMqvqTqft

    • With the battery unclipped, use the tweezers to grab the battery. Pull the battery out while keeping a firm grip to avoid dropping it.

  8. DplEONDNavoLitsI

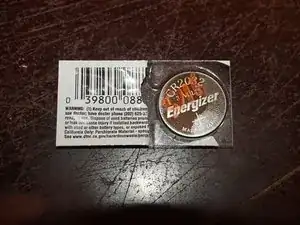

    • Put a note on the RAM door out of sight or write the replacement month and year.

    • If you replaced the battery in May of 2016, you would write 5/16 on the battery. If you wanted to write the month, date and year down, you would have to put a note behind the RAM door.

  9. 3AaVWGgDVHveJMFv
    3AaVWGgDVHveJMFv
    XpNxqIrUQfVauQ4E

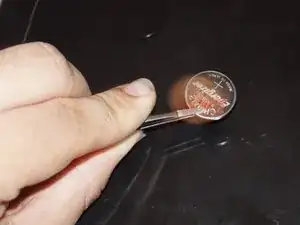

    • Make sure you do not drop the battery in the machine!

    • Open the new battery, and grab it with the tweezers. Do not grab too much so it will drop, but get enough you can keep a good grip on it.

  10. 3pE5YclwVfeLlUNw

    • With the battery in the tweezers, slowly slide the battery in the clip. Once you have it in, put one finger on the battery while removing the tweezers.

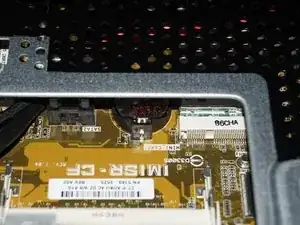

  11. MjPbco1nH3XSlOLA
    MjPbco1nH3XSlOLA
    aiClWbVyuWNlkJDi

    • With the battery in the clip, push down on the battery to lock it in the system.

Abschluss

To reassemble your device, replace the stand, RAM and RAM door. You will also have to reconfigure the BIOS. The machine will resort to checksum defaults since the battery was removed.
