Replacing the stand on the HP IQ506.

The part number for the stand this system uses is the HP 507866-001 stand. Note: This part does not include screws. You will need to get the diameter with a digital caliper if you do not have the screws. I DO NOT have this information to hand right now.

  1. o6v5FPSqssQpGHxe
    o6v5FPSqssQpGHxe
    AAWrCJsOOHhkkP5M

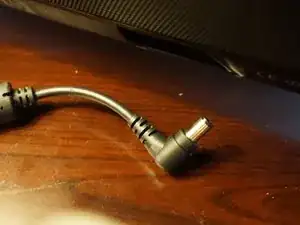

    • Unplug the power supply from the system.

  2. b4X2RKqOBSq1u2gJ
    b4X2RKqOBSq1u2gJ
    X4rWyfZpx1UiBIBB
    wlt1N4kpDemKTQTl

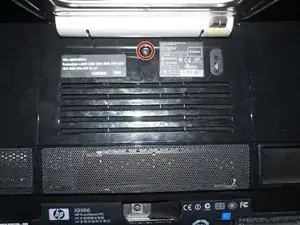

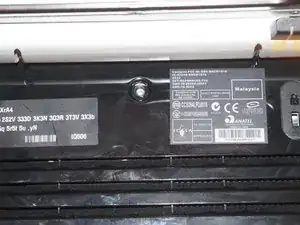

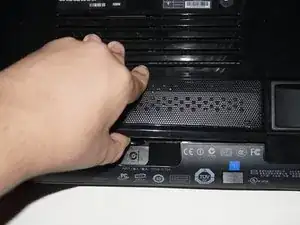

    • Unscrew the RAM door from the system. Use a Phillips #1 screwdriver. Once you do this, unclip it from the bottom and pull forward.

  3. RsZe5KsFxoHFATu5

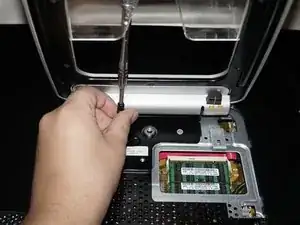

    • The top screws on the hinge are a burden to remove. You will have to do something like the pictures here show to make it go a little easier.

  4. Lj3IsQWSERJMSZIJ
    Lj3IsQWSERJMSZIJ
    YyAtvmfDHRYdkeoe
    TxssrFqDeXh6mhjh

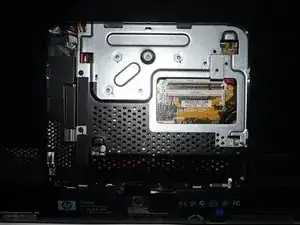

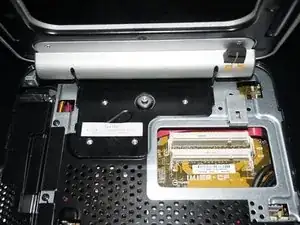

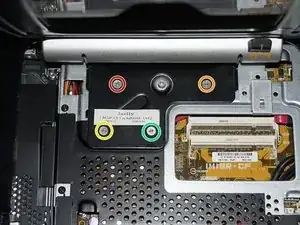

    • Remove the stand from the system. Use a Phillips #1 screwdriver to loosen the 4 screws. Grab the stand up to remove it from the system. There is no need to force it off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
