Follow this guide to open the housing on your HP Windows Mixed Reality Controllers TPC-Q044.
This guide goes over steps for the left controller, but the process is identical for the right controller.
Because most of the components in this device are enclosed within the housing, replacement for nearly all parts will require you to follow these instructions to access the internals.
Werkzeuge
-
-

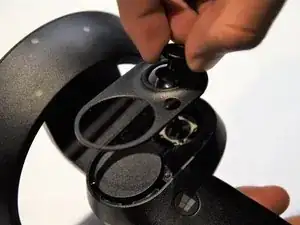

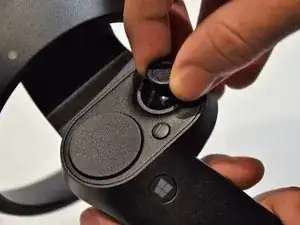

Grip the main body and pull the joystick outwards until the entire front panel pops off.
-

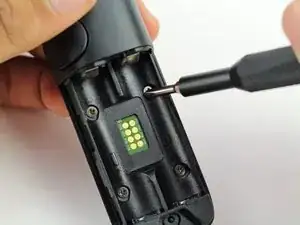

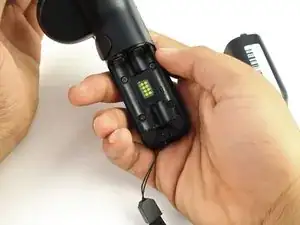

Remove the 6mm screw in the corner of the joystick well using a Phillips #00 screwdriver.
-
-
-

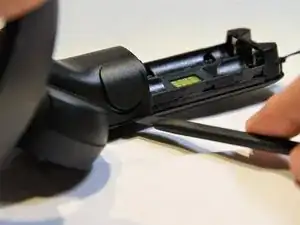

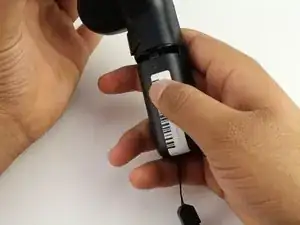

Use a spudger to pry apart the two halves of the assembly.
-

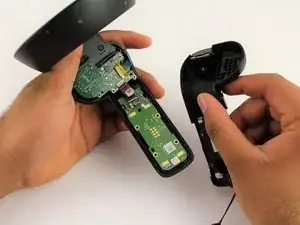

Work slowly, prying a small section at a time until the halves are completely separated.
-
To reassemble your device, follow these instructions in reverse order.
