HP Z2 Mini G3 Access Panel Replacement

Geschrieben von: Christian Ogburn
  • Kommentare: 0
HP Z2 Mini G3 Access Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

1 Minute

Einleitung

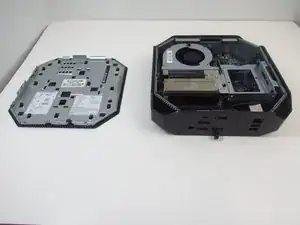

This is the top cover to access the interior components of the HP Z2 Mini G3 (Product No. 1LE81UP#ABA). This guide can direct you to remove the panel.

Be sure to turn off the device and disconnect the A/C power cord before removing the panel.

Components inside the device are also subject to static damage, so try and work on a hard surface to reduce this risk.

  1. TP6Fx2YZUbtEO4sB

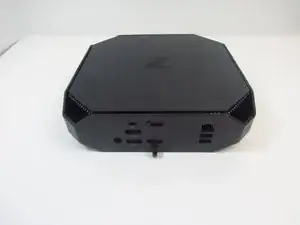

    • Turn the device so the back-side of the device is facing you.

    • Be sure that the power is off and the A/C power cord has been disconnected before starting. Removing hardware while the power is on could damage the device or harm yourself.

    • Components of the device are subject to static damage. Work on a hard, grounded surface to prevent damage to the workstation.

  2. W2iACMUXIxxgJKCF
    W2iACMUXIxxgJKCF
    CaHFBjsgqCJqWvZ2

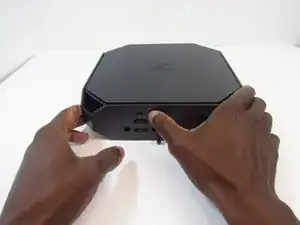

    • Slide and hold the latch in the direction of the engraved arrow (to the right).

  3. VEg5plOeBJONRvLl
    VEg5plOeBJONRvLl
    NSvHXEgMSCBI4Bsy

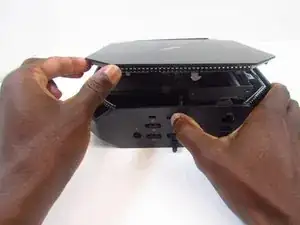

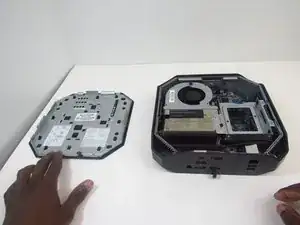

    • While holding the latch, lift the access panel upwards and towards yourself and set it aside upside-down.

Abschluss

To reassemble your device, follow these instructions in reverse order.
