Einleitung

The CPU processor is the part of your device that handles multiple tasks and processes at once. If you need to replace the CPU of your HP Z2 Mini G3, follow this guide.

Be sure that the power is off and the A/C power cord has been disconnected before starting. Removing hardware while the power is on could damage the device or harm you.

Components of the device are subject to static damage. Work on a hard, grounded surface to prevent damage to the workstation.

  1. TP6Fx2YZUbtEO4sB
    • Turn the device so the back-side of the device is facing you.

    • Be sure that the power is off and the A/C power cord has been disconnected before starting. Removing hardware while the power is on could damage the device or harm yourself.

    • Components of the device are subject to static damage. Work on a hard, grounded surface to prevent damage to the workstation.

  2. W2iACMUXIxxgJKCF
    W2iACMUXIxxgJKCF
    CaHFBjsgqCJqWvZ2
    • Slide and hold the latch in the direction of the engraved arrow (to the right).

  3. VEg5plOeBJONRvLl
    VEg5plOeBJONRvLl
    NSvHXEgMSCBI4Bsy
    • While holding the latch, lift the access panel upwards and towards yourself and set it aside upside-down.

  4. vKHMMcM1HkRPkMGM
    • Rotate the device so the front side is facing you (the side with the power button) and locate the CPU fan.

  5. 6lQvpCcZDEosenkE
    • Swing the fan upward, to a 90-degree angle.

  6. 5UEYLvRM6QVfT6hP
    5UEYLvRM6QVfT6hP
    eTZvd15InsIYgSGu
    • Carefully disconnect the CPU fan by pulling out the wires from the motherboard.

  7. MMyHHuBKL54LyOJw
    • Swing the fan back down and carefully unhook the CPU fan notches by pulling each tab away from the heat sink holes.

  8. 4JMDG3dRrgoxYSLJ
    • Swing the fan up again and pull it out.

  9. lXSnSBrNcGCGTWSi
    lXSnSBrNcGCGTWSi
    qVSIvXNTDOCyYZoY
    t2k2qlpbRcNPEsZF

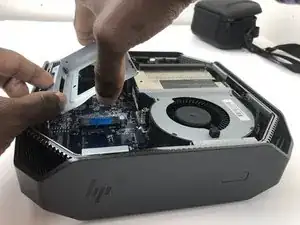

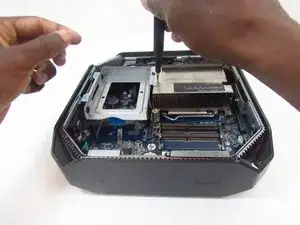

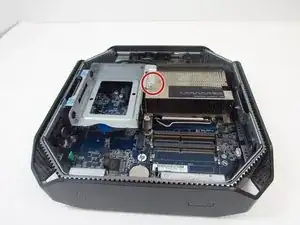

    • Remove the 9mm Torx screw with a T15 Torx screwdriver to release the SSD assembly.

    • Lift the assembly upwards to remove it.

  10. 3In3ZQl5aqEphVs5

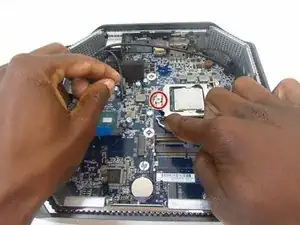

    • Pull the metal arm out from under the frame and lift it up. The frame should slide back from under the screw.

  11. TgmW4d1Xu1CSGu5x
    TgmW4d1Xu1CSGu5x
    ifQVRPLTlTPiJv2d

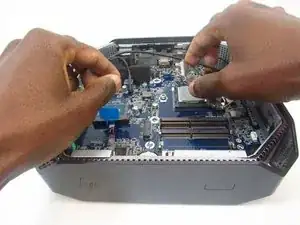

    • Lift the frame upward to gain access to the processor

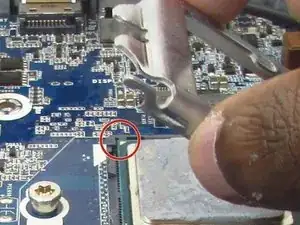

    • Take note of a triangular mark on one of the corners of the processor and bracket it is mounted on. The triangles must be aligned together during reassembly.

  12. A3UD4qcRtbthcybA

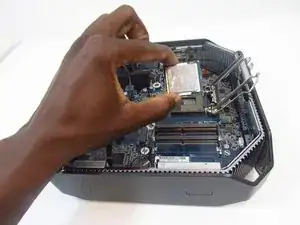

    • Grip the processor on each side, carefully lifting it up.

    • Do not touch the underside of the processor. Doing so may damage the processor and prevent a connection to the motherboard.

    • Be careful inserting the new processor. The connectors on the new one and the motherboard are fragile and damage easily.

Abschluss

To reassemble your device, follow these instructions in reverse order.
