HP Z2 Mini G3 Power On/Off and HDD Activity LED Replacement

Geschrieben von: Sympson Placide
  • Kommentare: 0
HP Z2 Mini G3 Power On/Off and HDD Activity LED Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

15 Minuten

Einleitung

The power on/off and HDD activity LED indicates whether the HP Z2 Mini G3 (Model No. 1LE81UP#ABA) is on or off. Also, the HDD activity LED supports as an indicator for hard drive operation.

Follow safe cable practice while handling the cables and keep them away from heat sources.

Be sure that the power is off and the A/C power cord has been disconnected before working on interior components. Removing hardware while the power is on could damage the device or harm you.

Components inside the device are also subject to static damage, so try and work on a hard surface to reduce this risk.

  1. TP6Fx2YZUbtEO4sB

    • Turn the device so the back-side of the device is facing you.

    • Be sure that the power is off and the A/C power cord has been disconnected before starting. Removing hardware while the power is on could damage the device or harm yourself.

    • Components of the device are subject to static damage. Work on a hard, grounded surface to prevent damage to the workstation.

  2. W2iACMUXIxxgJKCF
    W2iACMUXIxxgJKCF
    CaHFBjsgqCJqWvZ2

    • Slide and hold the latch in the direction of the engraved arrow (to the right).

  3. VEg5plOeBJONRvLl
    VEg5plOeBJONRvLl
    NSvHXEgMSCBI4Bsy

    • While holding the latch, lift the access panel upwards and towards yourself and set it aside upside-down.

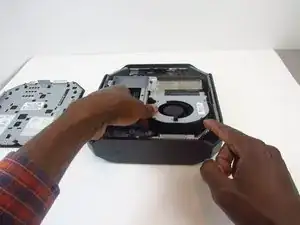

  4. vKHMMcM1HkRPkMGM

    • Rotate the device so the front side is facing you (the side with the power button) and locate the CPU fan.

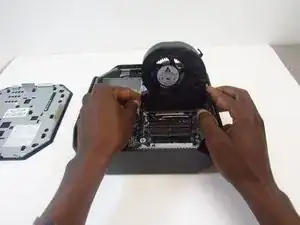

  5. 6lQvpCcZDEosenkE

    • Swing the fan upward, to a 90-degree angle.

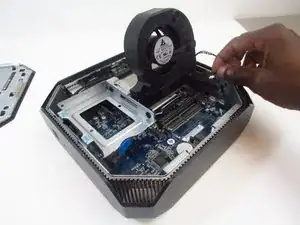

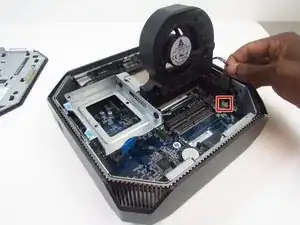

  6. 5UEYLvRM6QVfT6hP
    5UEYLvRM6QVfT6hP
    eTZvd15InsIYgSGu

    • Carefully disconnect the CPU fan by pulling out the wires from the motherboard.

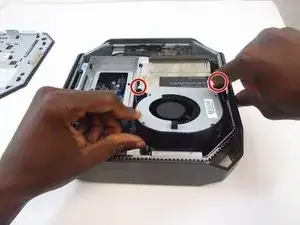

  7. MMyHHuBKL54LyOJw

    • Swing the fan back down and carefully unhook the CPU fan notches by pulling each tab away from the heat sink holes.

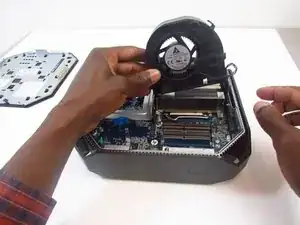

  8. 4JMDG3dRrgoxYSLJ

    • Swing the fan up again and pull it out.

  9. qESRxJCCV1GR5SbV

    • Remove HDD activity LED from retaining clip.

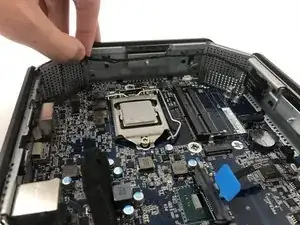

  10. wwXSZFFarqyQG5IZ

    • Grab and lift the cable off of the motherboard and chassis.

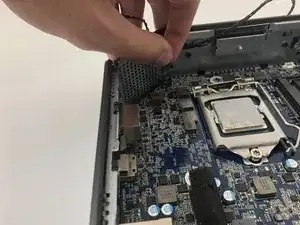

  11. abWsAUBcEtyC5ZFo

    • Pull the HDD activity LED out of the chassis.

  12. EZNVTLcOCtlYAOey

    • Pull the cable from the motherboard to finish removing the component.

Abschluss

To reassemble your device, follow these instructions in reverse order.
