HP Z2 Mini G3 Real-Time Clock Battery Replacement

Geschrieben von: Christian Ogburn

Kommentare: 0

HP Z2 Mini G3 Real-Time Clock Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

5 Minuten

Einleitung

The real-time clock (RTC) battery maintains the computer time in the HP Z2 Mini G3 (Model No. 1LE81UP#ABA). In case of malfunction or damage, this guide can direct end users to steps required to replace this battery.

Before starting this replacement, check out our troubleshooting guide to ensure the component actually needs replaced.

Be sure to turn off the device and disconnect the A/C power cord when working on the interior components.

Components inside the device are also subject to static damage, so try and work on a hard surface to reduce this risk.

Schritt 1

Turn the device so the back-side of the device is facing you.
Be sure that the power is off and the A/C power cord has been disconnected before starting. Removing hardware while the power is on could damage the device or harm yourself.
Components of the device are subject to static damage. Work on a hard, grounded surface to prevent damage to the workstation.

Schritt 2

Slide and hold the latch in the direction of the engraved arrow (to the right).

Schritt 3

While holding the latch, lift the access panel upwards and towards yourself and set it aside upside-down.

Schritt 4

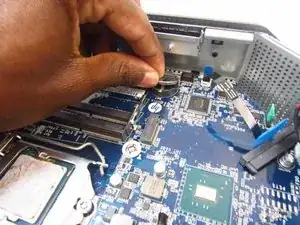

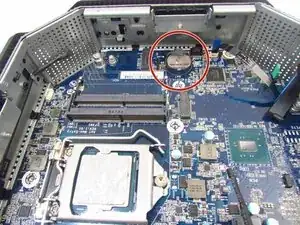

Rotate the device so the back-side is facing you and locate the RTC battery.
You may have to swing the CPU Fan and GPU Fan upwards to fully access the Real-Time Clock (RTC) Battery.
