HP ZBOOK 15 G5 LCD Replacement

Geschrieben von: Ved Pitre
  • Kommentare: 0
HP ZBOOK 15 G5 LCD Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 - 30 Minuten

Einleitung

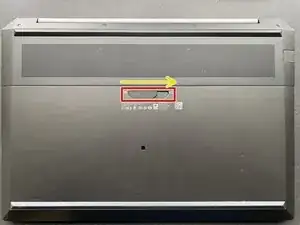

  1. BBAHBMEJcg4qpn1q

    • Find the bottom panel locking mechanism

    • Move the switch to the right to unlock and slide it in a downwards fashion

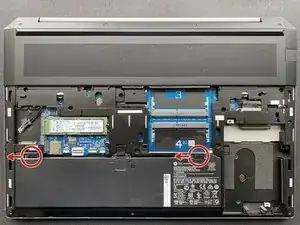

  2. EntTlUENWUeO31iV

    • Slide the battery latches to the right to loosen the battery

    • Remove the battery and place it to the side

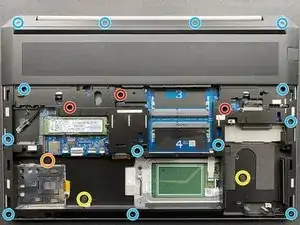

  3. ni6TWMy4MiTgCEnV

    • Remove the keyboard screws

    • Remove these screws with a T8 screwdriver

    • Remove these screws with a philips screwdriver

    • Once they are removed, carefully lift up the bottom case

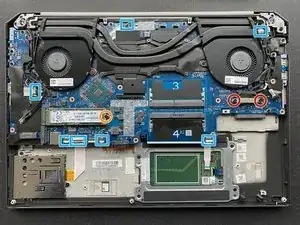

  4. DvfCucssl3odFOXX

    • Unscrew SSD screw and slide the SSD out

    • Remove these screws and place the LCD connector cover to the side

    • Disconnect all of the motherboard connectors

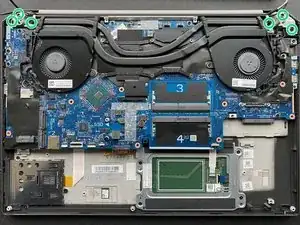

  5. UFiLoSuouF5Uw2RD

    • Unscrew the 6 LCD screws to the top left and right

    • Once removed, carefully remove the LCD

    • Tip: Remove two screws from each side and then place the laptop on it's side. Unscrew the final two and separate the LCD and Top Case

    • Screw the new LCD in and make sure to connect all of the LCD connectors

    • Screw the bottom case back onto the laptop

    • Connect the battery and put the battery cover back into place

Abschluss

Once the repair had been done. Call the user and let them know their laptop is ready for pick-up
