Einleitung
-
-

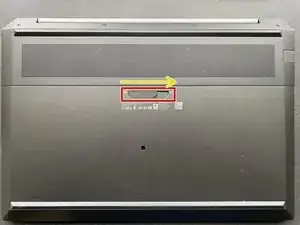

Find the bottom panel locking mechanism
-
Move the switch to the right to unlock and slide it in a downwards fashion
-
-
-

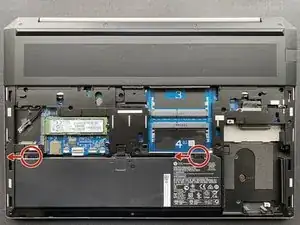

Slide the battery latches to the right to loosen the battery
-
Remove the battery and place it to the side
-
-
-

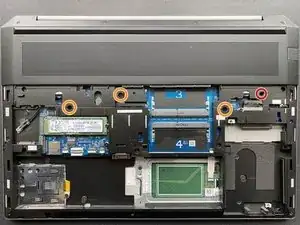

Unscrew the three keyboard screws on the bottom
-
While placing the laptop on it's side, push through the hole to release the keyboard
-

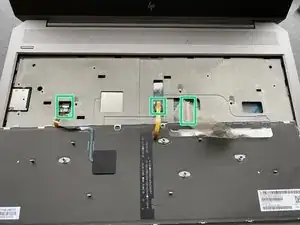

Once the latch releases, flip over the laptop and disconnect the three connectors as well
-
Place the keyboard to the side and flip the laptop over again
-
-
-
Remove these screws with a T8 screwdriver
-
Remove these screws with a philips screwdriver
-
Once they are removed, carefully lift up the bottom case
-
-
-

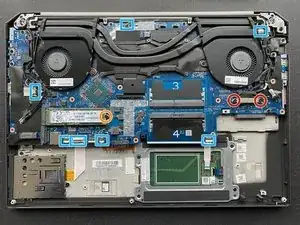

Unscrew SSD screw and slide the SSD out
-
Remove these screws and place the LCD connector cover to the side
-
Disconnect all of the motherboard connectors
-
-
-

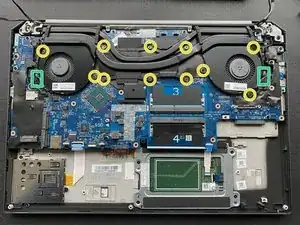

Unscrew all of the screws on the fans (Keep in mind the screw don't come all of the way out)
-
Make sure to disconnect the fan connectors before removing it
-
-
-

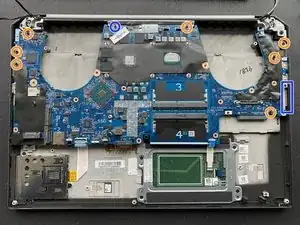

Unscrew the motherboard screws
-
Make sure the SD card holder has been removed
-
Remove the motherboard and place it to the side
-
-
-
Place the new motherboard in and screw it into place
-
Screw in the fans and reconnect the motherboard cables
-
Reconnect the LCD connectors
-
Screw the bottom case back onto the laptop
-
Connect the battery and put the battery cover back into place
-
Once the repair had been done. Call the user and let them know their laptop is ready for pick-up
