HP ZBook 15 4G Network Module Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

The ZBook 15 comes with a 4G wireless network module that allows you to connect to the internet via a SIM card provided by a wireless network company. If you need to replace the 4G network module on your laptop, follow this guide!

  1. oUUsahBa2QJygRJM
    oUUsahBa2QJygRJM
    N1gkgc6vxlnCO4CW

    • Flip the laptop over.

    • Slide the lever with the battery symbol beside it firmly until the battery pops out.

    • Remove the battery from the laptop.

  2. xMjHnW1tbPTDwMS2

    • Slide the right lever firmly to the right.

    • Slide the cover towards yourself to remove it.

  3. TYeYwarHvwJU2srS

    • Remove the two connectors by lifting gently with a metal spudger.

  4. P4Hn535rPrGGWHaW
    P4Hn535rPrGGWHaW
    Blj5HVp65VrQsoqB

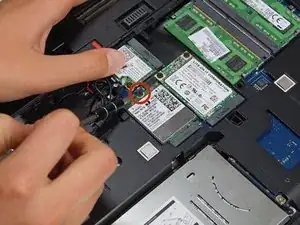

    • Remove the 3mm screw with a Phillips #0 screwdriver.

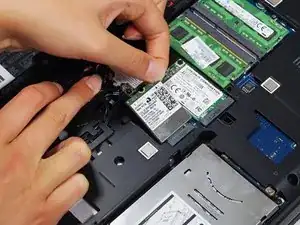

    • Remove the 4G Module by lifting up and out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
