HP ZBook 15 Fan and Heatsink Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

30 - 45 Minuten

Einleitung

Does your computer feel warmer than usual? Here are some reasons why your laptop might be running hot. If you determine that you need to replace the fan or heatsink assembly, follow this guide!

Werkzeuge

Ersatzteile

HP ZBook 15 Fan and Heatsink

Schritt 1

Flip the laptop over.
Slide the lever with the battery symbol beside it firmly until the battery pops out.
Remove the battery from the laptop.

Schritt 2

Slide the right lever firmly to the right.
Slide the cover towards yourself to remove it.

Schritt 3

Remove the two 16mm screws with a Phillips #0 screwdriver.
There are two sets of threads to get past. Once unscrewed from the first thread, lift the screw up until it hits the next set and begin unscrewing again.

Note that it is not necessary to completely remove these screws. They are meant to be 'captive' and not removed completely. If you unscrew them to that 'first thread' so they are loose and floppy, they are no longer holding the keyboard in place and it is safe to continue to the next step.

Joe Kyle - 17/03/17

Schritt 4

Do not try to pry the keyboard from the bottom. The keyboard is attached by clips on the left, top, and right side. Metal inserts on the bottom side lock the keyboard in place until they are slid up and out.
Be careful not to scratch or chip the computer when prying. If you have a plastic tool that is long enough to gain leverage, use that instead of a metal tool.
There are ribbons secured underneath so be careful not to pull the keyboard out too hard, breaking the connections to the ribbons.
Flip the laptop over so the keyboard is visible.
Insert the spudger under the left side of the keyboard.
Carefully raise the side of the keyboard and firmly pull the left corner of the keyboard until it pops up.
Run your fingers under the edges of the keyboard along the top edge of the keyboard, from the top left to the top right, to separate it from the remaining clips.
Carefully slide the keyboard up toward the screen and out of the case.

Please keep in mind that the keyboard comes with a metal plate. If you managed to pry one of the plastic rivets out of the keyboard, you've damaged the keyboard...

(I should have read the comments about taking the optical drive out first, haha...)

Brandon Lu - 07/08/16

that you for the info…. have a HP Zbook 15 G2 of my own.. this site is.. so.. helpful :)

josephwin - 07/12/20

Schritt 5

Gently lift the two tabs on either side of the black ribbon with a spudger until the ribbon comes loose.
Disconnect the black ribbon by pulling the blue tab hanging off of it.
Repeat with the white ribbon.

Schritt 6

Unscrew the captive screw shown near the battery compartment with a Phillips #0 screwdriver.
The screw does not come out all the way and stays attached to the computer.

Missed 3 screws to be removed before pushing the optical drive!

Vincent Rouillard - 23/01/17

Actually there are 4 screws

Vincent Rouillard - 23/01/17

Schritt 7

Push outward on the metal optical drive tab with a metal spudger to unlock the drive from its position in the case.
Once the drive is protruding from the side of the computer, pull it the rest of the way out.

Schritt 8

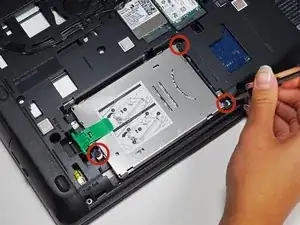

Unscrew the three captive screws holding the drive in place with a Phillips #0 screwdriver.
The screws will remain inside the springs of the hard drive caddy cover.

Schritt 9

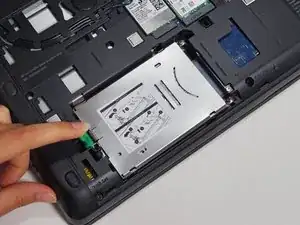

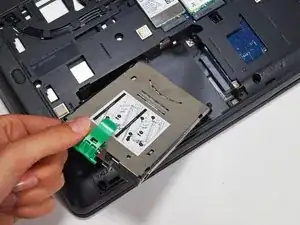

Pull the green tab away from the metal casing and lift the drive out.

Schritt 10

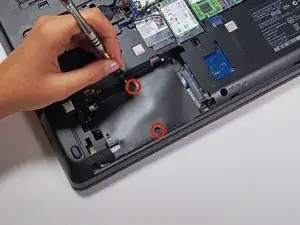

Unscrew two 3mm screws from the hard drive bay with a Phillips #0 screwdriver.

Schritt 11

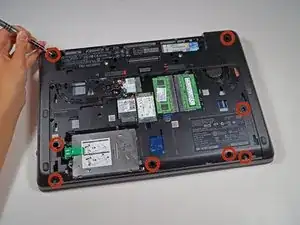

Remove the eight 6mm screws with a T8 Torx screwdriver.

Schritt 12

Rotate the laptop so the battery compartment is in front of you.

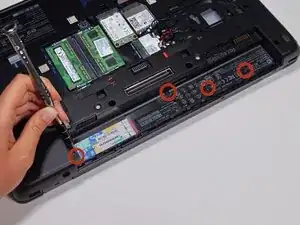

Remove the four 4 mm screws under the battery with a T8 Torx screwdriver.

Schritt 13

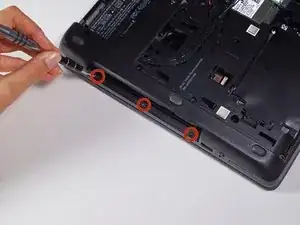

Remove three more 4mm screws from the optical drive compartment with a T8 Torx screwdriver.

Schritt 14

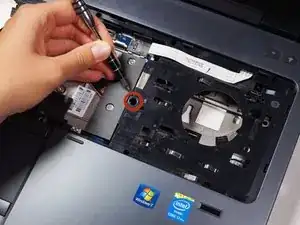

Flip the laptop so it is keyboard side up.
Remove the 6mm screw with a T8 Torx screwdriver.

Schritt 15

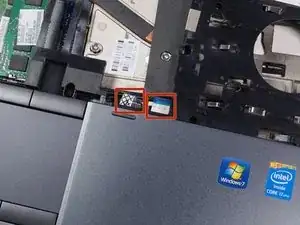

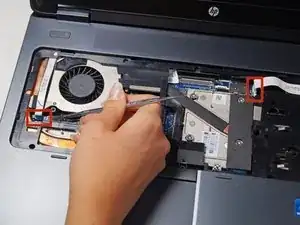

Use a spudger to lift the edges of the connector up so the white ribbon can slide out.
Pull the ribbons out by the blue plastic tab on the cable at each connector site.

Schritt 16

There are still ribbons that need to be removed before the top cover separates completely; do not yank the cover off after it is separated to prevent ripping the cables out.

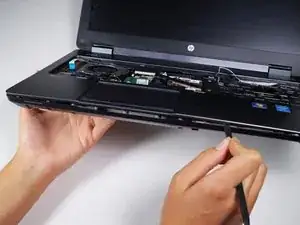

Start at the front of the latop and run a plastic spudger between the top cover and the case to undo the clips holding it together
If there is difficulty separating the top cover from the computer, do not force it. You might have missed a screw.

Schritt 17

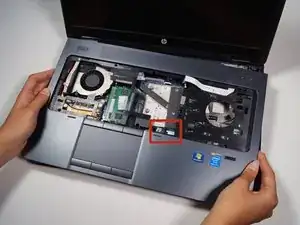

Angle the top cover so you can see the white ribbons shown in the picture.
Carefully slide the top cover toward you to expose the white ribbon connectors.
Use a spudger to lift the connectors and slide out both ribbons.

Schritt 18

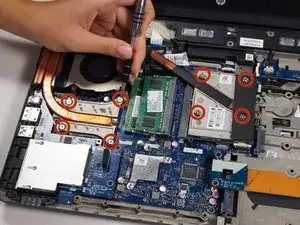

Unscrew the eight captive screws with a T9 Torx screwdriver.
Undo the screws in the order represented by the small numbers next to the screw on the heat sink assembly. Repeat this while reassembling to prevent damage to the components underneath.
These screws will also not unscrew all the way.

Schritt 19

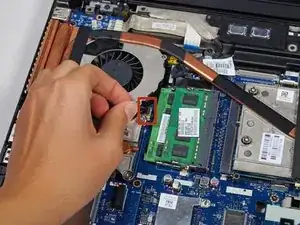

Gently pull up on the 4 pin fan power connector cable to unplug it from the system.

Schritt 20

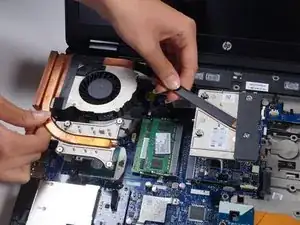

Gently lift the fan and heatsink assembly straight up and out so you do not smear the thermal paste.
Thermal paste is a heat conductive gel applied to the underside of the heatsinks. Be careful not to wipe any off or else the components within the laptop will not cool properly and could become damaged. It also makes a big sticky mess if it smears or gets on any other components.

I’m planning to upgrade the GPU on my Zbook. Do you have any idea what thermal pads should I use?

As far as I know, there are different components that require pads of different thickness (memory modules, VRMs, etc). I dont remember reading about this in HP’s official service guide for this model, perhaps because they sell the GPU and heatsink with those pre-applied.

Also, I would like to be recommended a thermal pad brand if possible.

Thanks in advance!

Luis Alejandro Araúz - 02/03/20

Is it always necessary to replace the heatsink, or can I just replace the fan and reseat the heatsink with a good thermal pad? I am seeing the fan sold separately and not sure why the heatsink itself might need replacement—didn’t thin k they “wore out”.

Spud Chick - 22/01/21

Abschluss

To reassemble your device, follow these instructions in reverse order.
