HP ZBook 15 SSD Cache Replacement

Geschrieben von: Grant Terris
  • Kommentare: 4
HP ZBook 15 SSD Cache Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

Solid state drives are much faster than hard disk drives, but are much more expensive. The ZBook 15 comes with a small solid state storage unit called a cache. If you want your computer to run faster, you can move your operating system from the disk drive to the solid state cache. This will greatly decrease the amount of time it takes for your computer to boot from its powered-down or sleep states. If you need to replace the solid state cache on your laptop, follow this guide!

  1. oUUsahBa2QJygRJM
    oUUsahBa2QJygRJM
    N1gkgc6vxlnCO4CW

    • Flip the laptop over.

    • Slide the lever with the battery symbol beside it firmly until the battery pops out.

    • Remove the battery from the laptop.

  2. xMjHnW1tbPTDwMS2

    • Slide the right lever firmly to the right.

    • Slide the cover towards yourself to remove it.

  3. UYu6P2MElrkVGOTo
    UYu6P2MElrkVGOTo
    2mBOHaUxLo5CLlTq

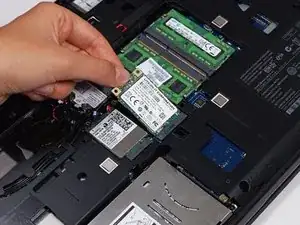

    • Remove the two 3 mm screws with a Phillips #0 screwdriver.

    • Remove the Solid State Cache by pulling the module up and out.

    Solid State Cache is mSATA, How max size mSATA SSD for HP ZBook15 G1?

    Gannon A -

    I know I’m nearly three years late, but for anyone who’s wondering the same:

    The largest retail mSATA SSD I’ve seen is the Samsung 860 EVO mSATA 1TB. I have the 250GB version and it’s been great!

    If you’re willing to risk it, there is a guy (latency2050 ) selling 2TB mSATA drives for a bit less than $300 on ebay. Those are pulled from Samsung T3/T5 external SSDs, so you get exactly zero warranty.

    Luis Alejandro Araúz -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Grant Terris

Mitglied seit: 31/01/15

2795 Reputation

2 Kommentare

Does it create a seprate volume drive by inserting the mSata SSD to install Operating System on it?

Reza Sajedi -

Remember, this machine is from 2013, a time when SSDs were still hella expensive! That’s why the mSATA drive is refered to as a “cache” drive: they were so small they were only good for that. A stock, untouched Zbook g1/g2 might still come with a small (32GB) mSATA SSD configured as cache in the OS.

That doesn’t mean you can’t use the mSATA drive as your main OS drive, and that’s what I’ve been doing for years without a hint of trouble. You can easily find a high capacity mSATA SSD and put your OS and I/O-intensive programs on it. The Zbook will purr along nicely.

Luis Alejandro Araúz -
