HP ZBook 15 Wi-Fi Card Replacement

Geschrieben von: Grant Terris
  • Kommentare: 1
HP ZBook 15 Wi-Fi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Are you having problems with your wi-fi? Here is some more information about why you might not be able to connect to wireless networks. If you determine that your wi-fi card needs to be replaced, follow this replacement guide!

  1. oUUsahBa2QJygRJM
    oUUsahBa2QJygRJM
    N1gkgc6vxlnCO4CW

    • Flip the laptop over.

    • Slide the lever with the battery symbol beside it firmly until the battery pops out.

    • Remove the battery from the laptop.

  2. xMjHnW1tbPTDwMS2

    • Slide the right lever firmly to the right.

    • Slide the cover towards yourself to remove it.

  3. 4DkuwDA6cIiQnYen

    • Lift up the two tabs connected to wires.

  4. lvfUjnCBxYS2AnCO
    lvfUjnCBxYS2AnCO
    TmcdfZVMf3qOm41U

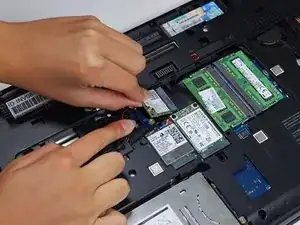

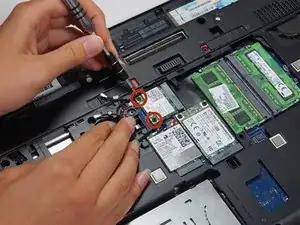

    • Remove the two 3mm screws from the corners of the card with a Phillips #0 screwdriver.

    • Lift the card up and slide it out to disconnect it.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Grant Terris

Mitglied seit: 31/01/15

2795 Reputation

Ein Kommentar

I’m planning to upgrade my Zbook by installing a Wireless AC-capable WiFi module. I’ve found a cheap one that’s compatible according to the service manual: the Intel 7260HMW. However, it doesn’t have an HP SPS, it seems to have come from a DELL laptop.

Has anyone tried this? Will it work? I guess I’ll find out the hard way!

Hopefully, the seller will allow me to test the adapter before buying.

Luis Alejandro Araúz -
