HP dv5-1125nr Disk Drive Replacement

Geschrieben von: Nick Loey
  • Kommentare: 0
HP dv5-1125nr Disk Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

1 - 5 Minuten

Einleitung

Replacing your optical drive is not a complex process. Follow this guide to learn how!

  1. BVWDRqLuKCIUWe32

    • Ensure your computer is shut down. Removing the battery while the laptop is still on may corrupt your files. Remove any power adapters and cords connected to the laptop body.

    • Slide the switch to the left until the release clicks.

  2. AlZXLwHFWXuuxSdX

    • Remove the battery.

    • The release switch may need to be held down while removing the battery.

  3. FVmHZRQG1dVHbgw3
    FVmHZRQG1dVHbgw3
    Y66ejELThSTFHfZH

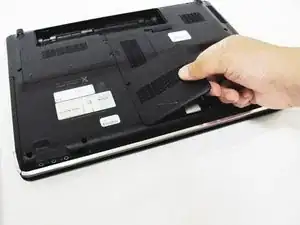

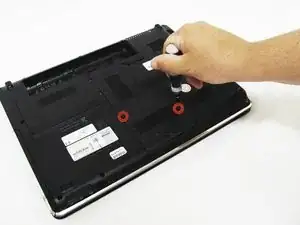

    • Locate two 3mm Phillips screws on the CMOS panel cover and remove them with a Phillips #00 screwdriver.

    • Remove the CMOS panel cover.

  4. mOX1AVTZjGAGWdso
    mOX1AVTZjGAGWdso
    AwMeenrRjZmPxNZX
    ZxpcJhKSspwnDDMT

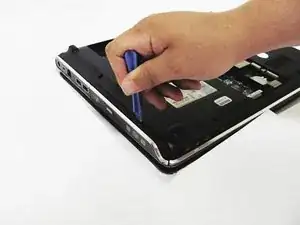

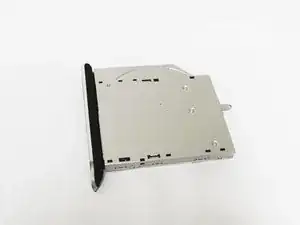

    • The optical drive is now ready for removal. Using a plastic removal tool, lift the optical drive away from your computer.

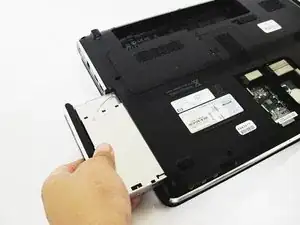

    • Using your hands, slide the remainder of the drive out of the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
