HP x2 10-p010wm Speaker Replacement

Geschrieben von: Nathan Ojala
  • Kommentare: 0
HP x2 10-p010wm Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 Minuten

Einleitung

Model Number : HP x2 10-p010wm

If sound is not coming out of your device or the sound is distorted, it is a sign that you need to replace your speakers

This guide will show you how to take apart the screen in order to access to its speakers. But we recommend you to check our troubleshooting page.

  1. sVTKR2EYMH3hn1WG

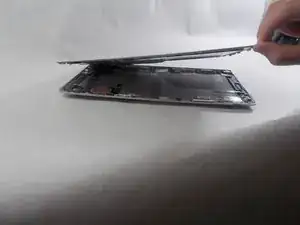

    • Pull the screen away from the keyboard.

  2. SqtC5YMn4RjITUYO
    SqtC5YMn4RjITUYO
    4nZ1pPwbI3YLbwMd

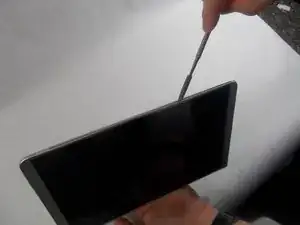

    • Insert a spudger into the space between the screen and computer and gently pry the two pieces apart. Continue this around the whole screen.

  3. dPHJIOIe4vPQPGAl

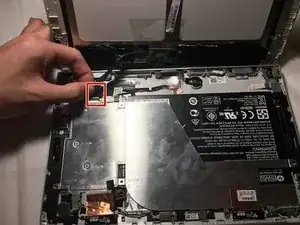

    • Slowly disconnect the thin wire attaching the screen to the rest of the computer by holding one end and sliding it down.

    • Do not pull up too hard; slowly slide it towards the screen.

  4. QsfeNFx1jkKdFBJ6

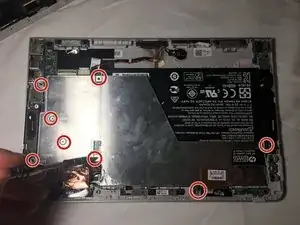

    • Remove the eight 4mm Phillips #00 screws from the metal plate.

  5. SsiGQaLeEVHBbYQe
    SsiGQaLeEVHBbYQe
    LHHwQnhqbLfrcjfa
    RsOZUCdmlQSBmTLO

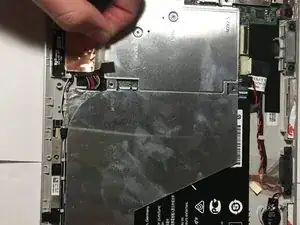

    • Slowly peel up any tape securing the wire to the metal cover.

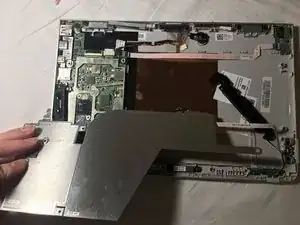

    • Remove the metal cover to access the battery.

  6. FgtWgWSSuP35bcqF

    • Remove the 4mm screw on the side.

  7. ovqqhC6ZadL6gUPK

    • Remove the black tape.

    • Pull the battery connector towards the battery to disconnect it from its socket.

  8. UWg6E4WeqFrMCKmH

    • Remove the battery.

  9. 2qYSLLC2d2Ki5jy2
    2qYSLLC2d2Ki5jy2
    MuZkdNuk3x45nl2v

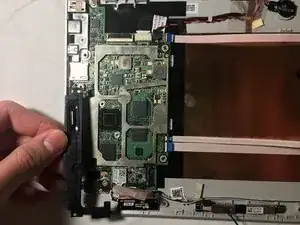

    • Remove speakers on both sides.

Abschluss

To reassemble your device, follow these instructions in reverse order.
