HP8 1401 Speakers Replacement

Geschrieben von: Katie Presz
  • Kommentare: 0
HP8 1401 Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This guide is used when the speakers are damaged or do not produce sound. You will need to use a little bit of force to remove the speakers from the tablet.

  1. JufRsCqvmOELlcZ4

    • Using a Torx T4 screwdriver, remove the four 5 mm screws on the back panel.

  2. XvqPOIBJldWAKhNU

    • Insert the tip of a plastic opening tool in the seam between the front and back panels.

  3. WDHxTKCCGdSgmbNt
    WDHxTKCCGdSgmbNt
    Fu5JMIy5ptF3X3TA

    • Slide the plastic opening tool around all edges of the device until the back panel detaches.

    • Lift off the back panel.

  4. AiJ6ABqjw1SvfASS

    • Using tweezers or your fingers, disconnect the two speaker cables by pulling them free of the socket connectors.

  5. Z4ricbFy4tbPUlm3

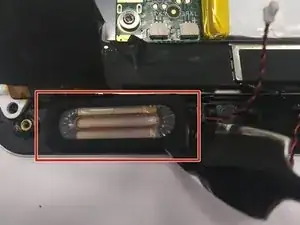

    • Use a spudger to pry the speakers up and out of the case.

  6. dfFZGUOSosHsVaiY

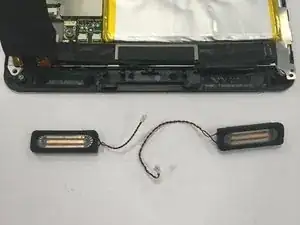

    • After removing the speakers they should look like this.

Abschluss

To reassemble your device, follow these instructions in reverse order.
