HPE Proliant DL20 Gen10 RAM Replacement

Geschrieben von: Ross Alas
  • Kommentare: 0
HPE Proliant DL20 Gen10 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

15 - 25 Minuten

Einleitung

The HPE Proliant DL20 Gen10 server is an enterprise-level server that is well suited for small-medium enterprises (SME). With support for Intel Xeon processors, RAID, dual power supplies, and ECC RAM, it is a reliable machine to host mission-critical workloads and data.

However, RAM can go bad and result in stability issues or downright just won’t work. If you suspect RAM issues, this guide is useful for helping you in replacing it. No background knowledge is necessary to replace a RAM module and it is easy to do. You will need to use an anti-static wrist strap to prevent accidental electrostatic discharge and have a compatible replacement module to perform this replacement. You don’t need to have any other tools to perform this replacement as it is tool-less.

Applicable models:

P17081-B21, P17077-B21, P17078-B21, P17079-B21, P17080-B21, P06476-B21, P08335-B21, P06961-B21, P06962-B21, P06963-B21

  1. FrjdqKlrFcIsQ6NE
    FrjdqKlrFcIsQ6NE
    NF4frqhdk5vU6fTc

    • Place the server on a solid surface. Make sure to ground yourself using an anti-static wrist strap.

    • Use a plastic opening tool to unlock the top cover. Once unlocked, press and lift the lever.

  2. 3FThBi4EM33WdGoB
    3FThBi4EM33WdGoB
    F1YEPIpSH422V4Nk

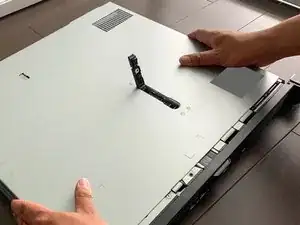

    • The top cover will slide backward when the lever is fully extended. Remove the top cover.

  3. OqSEtEODiSaubpfC
    OqSEtEODiSaubpfC
    2eXZT2MkoZj3RIQU
    QME4vLMcltpZwM1N

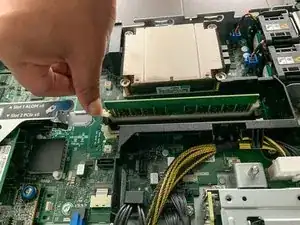

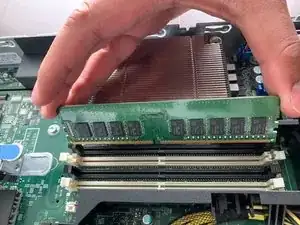

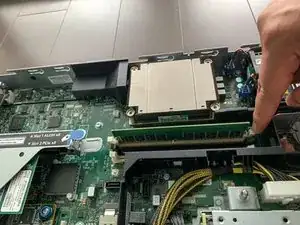

    • Unclip the RAM module on both sides.

    • Handle the RAM module on its edges to reduce the likelihood of accidental electrostatic discharge or damage to the components.

Abschluss

To reassemble your device, follow these instructions in reverse order.
