Einleitung
Prerequisite Only
This guide will show how to remove the back panel of the HTC Amaze, which will then make it easier to access other components of the device.
-
-

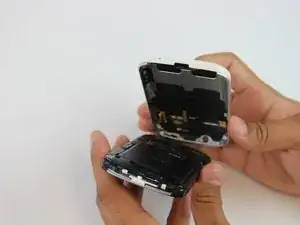

Gently press the Release Button located at the bottom of the phone in order to remove the back panel of the device.
-
-
-

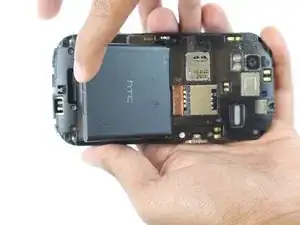

Once you locate the battery, look for a notch below it.
-
Gently insert your fingernails into the notch.
-
Lift the battery out of its recess.
-
-
-

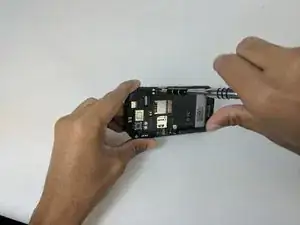

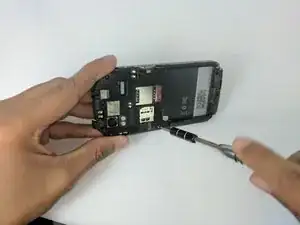

Use the Torx T5 screwdriver to remove the 7 Torx Screws (3mm) attached to the back housing of the device.
-
-
-

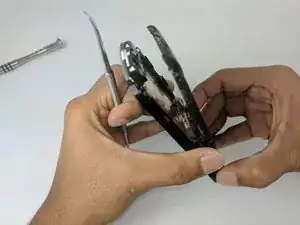

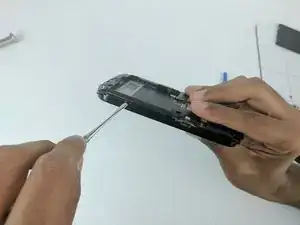

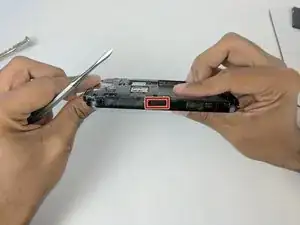

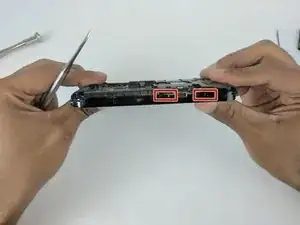

Proceed to remove the back housing by using the spudger to gently unclip each clip holding the back housing in place and then lift the outer edges of the back housing
-
-
-

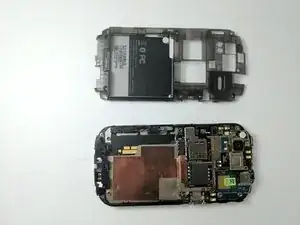

Now simply remove the back panel by gently pulling. This will make it easier to access the devices internal components.
-
To reassemble your device, follow these instructions in reverse order.
