HTC Desire 510 Loudspeaker (Ringer) Replacement

Geschrieben von: ZFix
  • Kommentare: 3
HTC Desire 510 Loudspeaker (Ringer) Replacement

Schwierigkeitsgrad

Very easy

Schritte

2

Zeitaufwand

2 - 5 Minuten

Einleitung

HTC Desire 510 / RIO - How to replace the loudspeaker.


  1. UXHTBLy2GQQOCJx6
    UXHTBLy2GQQOCJx6
    vDdmkfFDkITedenc
    6MMCFfXfJnG3V62w

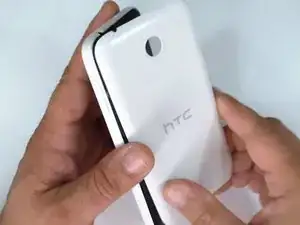

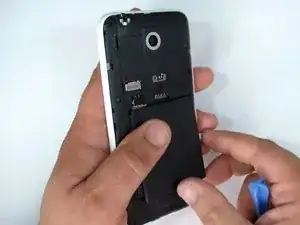

    • Switch off the phone, remove the battery and any installed SIM and memory cards.

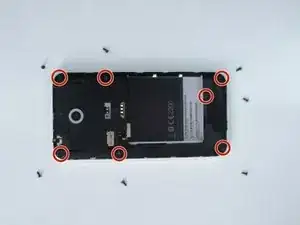

    • Remove 7x Torx T5 screws.

  2. PVDrCYyuOCKwVgqr
    PVDrCYyuOCKwVgqr
    ImVOoH3ovrHD3X4B
    N2iEx2scf1y3fcRx

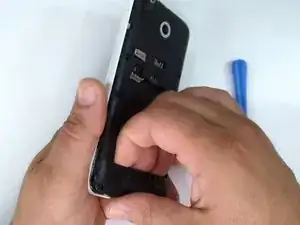

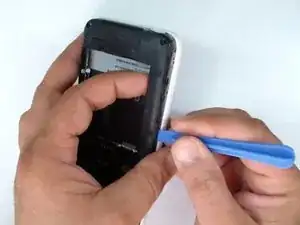

    • Use a plastic tool to remove the rear bezel.

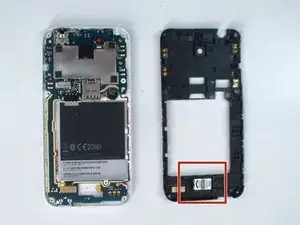

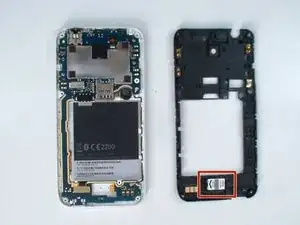

    • The loudspeaker is on the inner side of the rear bezel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
