HTC Desire 610 Battery Replacement

Geschrieben von: Alex Martin
  • Kommentare: 2
HTC Desire 610 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

Is your HTC Desire 610 not holding a charge? Instead of taking it to your phone provider, follow these steps and you can replace that old battery in no time! It's as simple as: take off the back, unscrew the circuit cover, pry out the old battery, and put in a new one. Ta-dah!

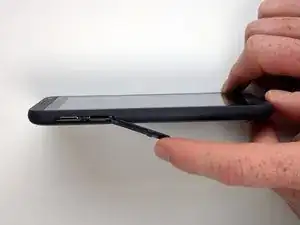

  1. aiSY4jrFmJJfjQ43

    • Open the SD card slot.

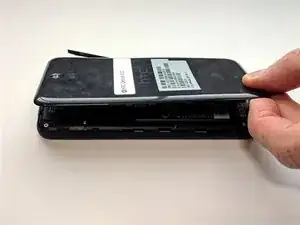

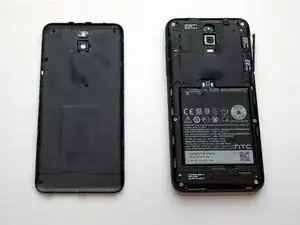

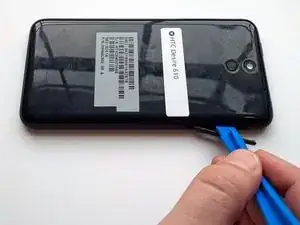

  2. 6MydWvNyMlRVcPFh
    6MydWvNyMlRVcPFh
    cIWTSPlo1FkUagKC
    gJXb6JSN3LORX2FA

    • Using plastic opening or prying tool, take off the back cover of the phone.

    • The SD slot opens an area where the edge of the back is exposed and can be pried open easily.

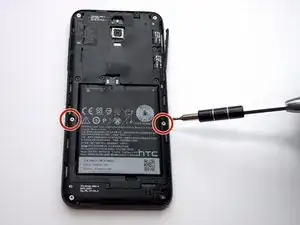

  3. 2UVQHDlSxQeXNak3

    • Using Phillips 000 Screwdriver, remove the two 2.5mm phillips head screws.

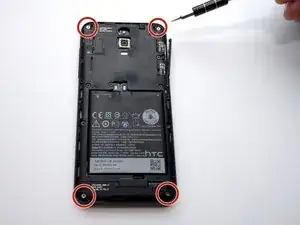

  4. lwYGQJkeIfAOXCJH

    • Using Torx T5 screwdriver, remove the four silver 5mm torx head screws.

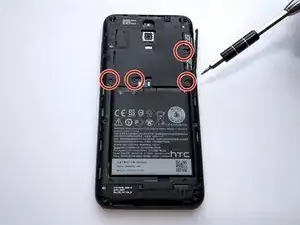

  5. VvAOySTBHoNCqWwl

    • Using Torx T5 bit size, remove the four black 4mm torx screws

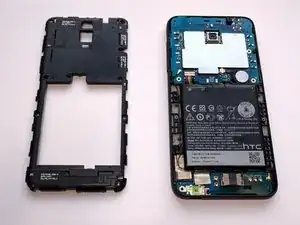

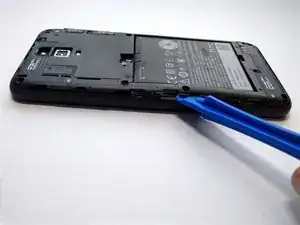

  6. Q6vJCSpv2gWfPTQb
    Q6vJCSpv2gWfPTQb
    wwDZxGdMEL1lrek3

    • Using plastic opening or prying tool, remove the black plastic circuit cover.

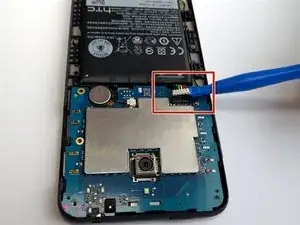

  7. qAPEmllyHvRBTUMR
    qAPEmllyHvRBTUMR
    FIWyCIIsDCWSmXbh

    • Using small plastic opening tool, disconnect the wire connection. Do this by carefully inserting tool under wires and pulling straight up.

    • You may need to pry from both sides of the wires to remove the connection.

    • Be careful! Damaging the connection port could prevent a new battery from working.

    • When inserting a new battery, press firmly on the white connector to snap it into it's port.

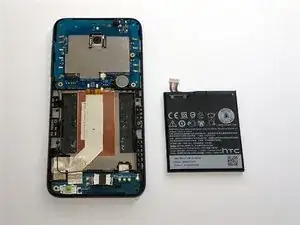

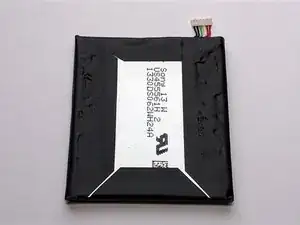

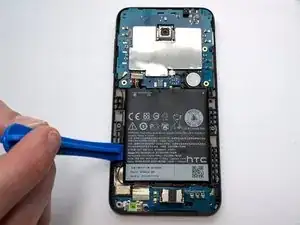

  8. kJnYyyXciDZQY2GL
    kJnYyyXciDZQY2GL
    GjwmCPK3WlRRZNiA
    KYXN4RZ4BqwZEwML

    • Use the plastic opening tool - you can use a larger one, or keep using the small one - to pry out the battery.

    • The battery is glued in with adhesive, so you may have to pry a little hard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
