HTC Desire 610 Black Plastic Circuit Cover Removal

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

3 Minuten

Einleitung

  1. H4jVxnDvBTOMsZAn
    H4jVxnDvBTOMsZAn
    XpKiEGQ2ZgBaiV3T
    mGIncCYu4nvBWgqA

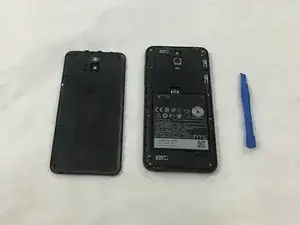

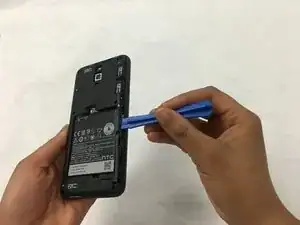

    • Using a plastic opening tool, take off the back cover of the phone.

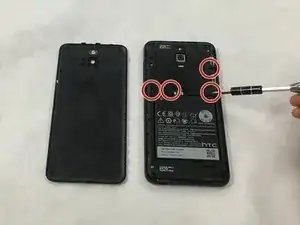

  2. dBFjuiF4yFJtMpjd

    • Remove the four black 4mm torx screws using the Torx T5 bit.

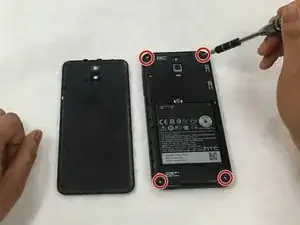

  3. jkajd5FZH6IvTIxZ

    • Remove the four silver 5mm torx head screws using the Torx T5 screwdriver.

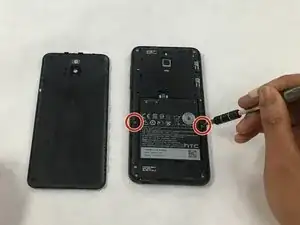

  4. M4sC2GFfXCLrXUcw

    • Remove the two 2.5mm phillips head screws using the Phillips 000 screwdriver.

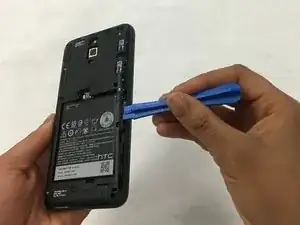

  5. 56yrL2nDcS6GKI3S

    • Remove the black plastic circuit cover using a plastic opening tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
